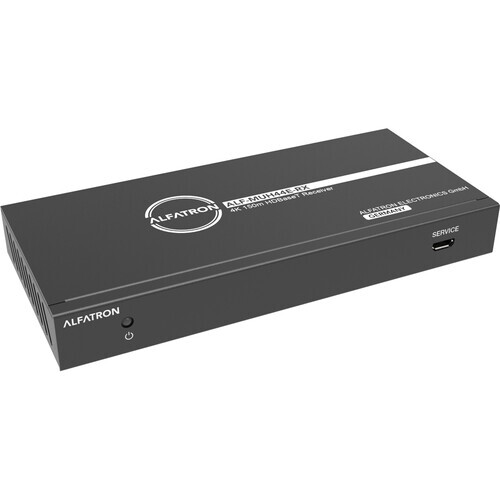

ALF-MUH44E-RX | Alfatron 4K HDMI over HDBaseT Extender Receiver
ALF-MUH44E-RX
Alfatron 4K HDMI over HDBaseT Extender Receiver
ALF-MUH44E-RX
Alfatron 4K HDMI over HDBaseT Extender Receiver
- UM : EA
Use the 4K HDMI over HDBaseT Extender Receiver from Alfatron to convert an incoming HDBaseT signal to HDMI for display on a monitor or projector. It is compatible with the separately available ALF-MUH44E, MUH88E, or SUK4T transmitter that can transmit 1080p video from up to 492' away and 4K video from up to 328' away via HDBaseT over Cat 6/7 cable.
Features include HDMI video with embedded audio, bidirectional IR control, HDR support, EDID management, CEC control. The unit can receive PoC (power-over-cable) from the transmitter to reduce cabling. A 3.5mm audio output allows you to de-embed analog audio to speakers.
Quick Details
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Video resolution up to 4K60 YUV 4:4:4
- Supports 18 Gb/s lossless compressed HDBaseT signal transmission
- HDR, HDR10, HDR10+, HLG support
- Receives video via HDBaseT from up to 492' (1080p) or 328' (4K) via a single Cat 6/7 cable
- HDMI audio passthrough up to 7.1CH HD audio
- LPCM and DTS-HD Master Audio support
- Audio de-embedding is supported via 3.5mm analog output
- Advanced EDID management and CEC control
- Supports 24V power-over-cable (PoC) from transmitter via HDBaseT
- Compatible with separately available ALF-MUH44E, ALF-MUH88E, and ALF-SUK4T transmitters
