ALF-SUK4T | SUK4T IS AN HDBASET SPLITTER KIT WITH 1X HDMI INPUT AND 4X HDBASET WITH 1X HDMI LOCAL OUTPUT FOR CA

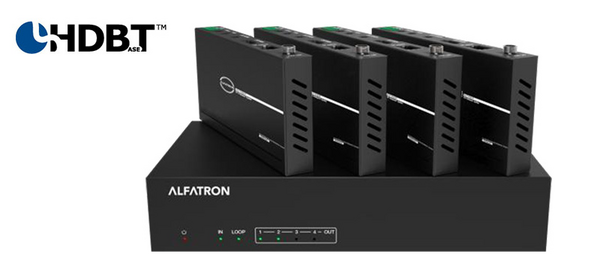

The ALF-SUK4T is an HDBaseT Splitter kit with a single HDMI input and four HDBaseT outputs and a local HDMI output. The HDMI output can be used to monitor local devices or cascade with an additional splitter. The ALF-SUK4T allows uncompressed 4K (max) HDMI, IR, and RS232 signals to be transmitted over a single CAT 6/7 cable. It supports transmission of 4K signals up to 328ft(100m) and 1080p signal up to 492ft(150m). If required, use the Local HDMI output to cascade the HDMI signal up to four times with an additional SUK4T. The ALF-SUK4T is also capable of bi-directional IR control, RS232 control, EDID management, and PoC.

Features:

• Supports HDMI 2.0 video resolutions up to 4K@60Hz 4: 4: 4
• Distribute a single UHD/4K HDMI signal to four HDBaseT outputs and one loop HDMI output
• Supports cascade connection, distributes video signal to multiple video displays
• Maximum transmission distance is up to 328ft(100m) for 4K, and 492ft(150m) for 1080p
• Supports video resolution down-scaling, a 4K input can be automatically downgraded to 1080 output
• Supports audio de-embedding
• Each HDBaseT output supports IR pass-through
• Supports RS232 and IR cascade control
• Supports 24V PoC – the HDBaseT receiver can be powered via the HDBaseT splitter
• Includes HDBaseT receivers
