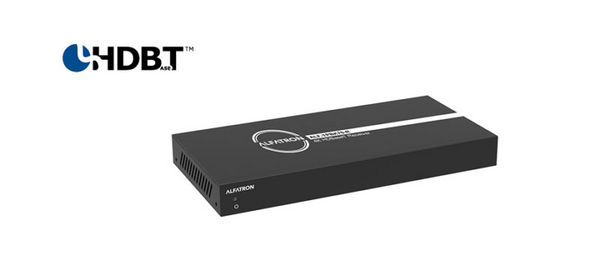

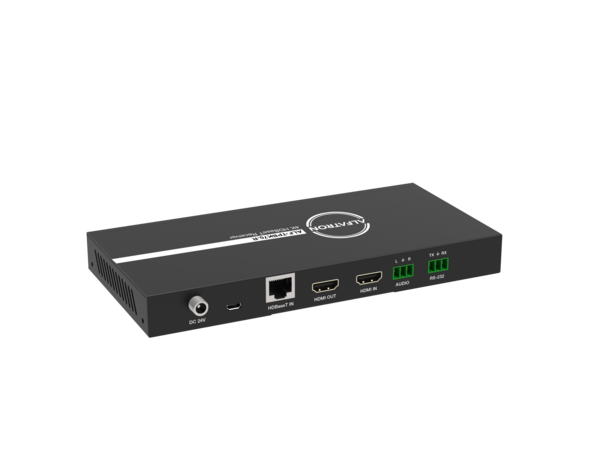

ALF-TPBK70-R | THE ALF-TPBK70-R IS A HDBASET EXTENDER CONSISTS OF A RECEIVER ONLY.

The ALF-TPBK70-R HDBaseT receiver supports video resolutions up to 4K2K@50/60Hz 4:4:4 from the transmitter over CAT6. It has bi-directional RS-232 pass-through; audio de-embedding and the RS-232 control signal can be transmitted up to 131ft / 40m. Supports local HDMI in with auto switching between HDBaseT in and local HDMI in.

Features:

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
• HDMI input supports 18Gbps video bandwidth,
• Auto switching between HDBT in and local HDMI in
• Video resolution up to 4K2K@50/60Hz 4: 4: 4
• HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable
• Supports 3D, HDR10
• HDMI audio formats support LPCM, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Supports POE function (Receiver to Transmitter only)
