ALF-VMIX-MINI | MINI HDMI SWITCHER, 5" FHD LCD, 4 HDMI IN, 4 HDMI OUT FOR PGM
ALF-VMIX-MINI
MINI HDMI SWITCHER, 5" FHD LCD, 4 HDMI IN, 4 HDMI OUT FOR PGM
Click image to enlarge
ALF-VMIX-MINI
MINI HDMI SWITCHER, 5" FHD LCD, 4 HDMI IN, 4 HDMI OUT FOR PGM
- UM : EA

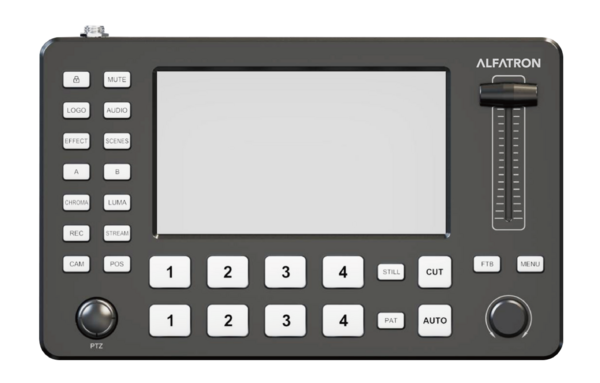

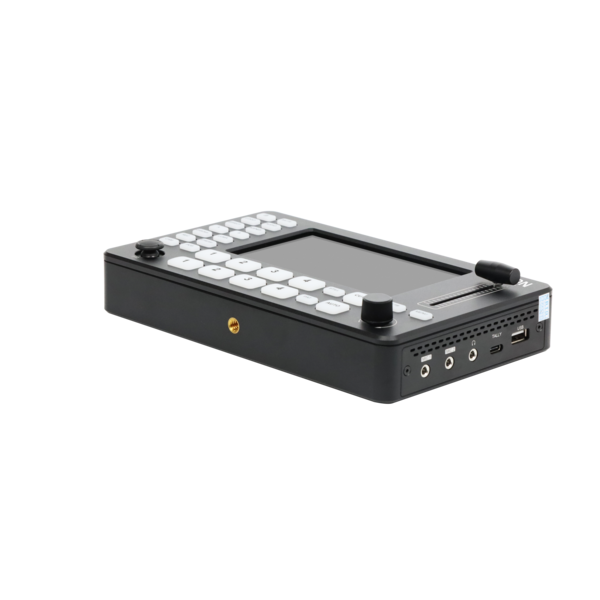

The ALF-VM-Mini switcher is a mini portable multifunctional and professional quad HDMI video switcher with 4x HDMI Input ports.
Features:
- Easy to carry with mini size
- Easy to monitor and preview with 5” wide gamut FHD LCD
- Quad HDMI inputs, Dual HDMI outputs for PGM, One UVC streaming
- Dual audio inputs, support both Line-in and mic
- One audio output, with selectable sources
- T-bar switching, more than 30 effects
- Film grade chroma keying
- Inner media library, supports user defined pictures and imported pictures
- Logo with alpha channel, supports PNG format
- Flexible layers switching, each with position, size, chroma key and mask
- FTB and image freezing
- Five-way rocker for agilely controlling PTZ
- Focus, white balance, position for PTZ control
- Local video recording
- RTMP multi live broadcast platform, with adjustable code rate and one key streaming

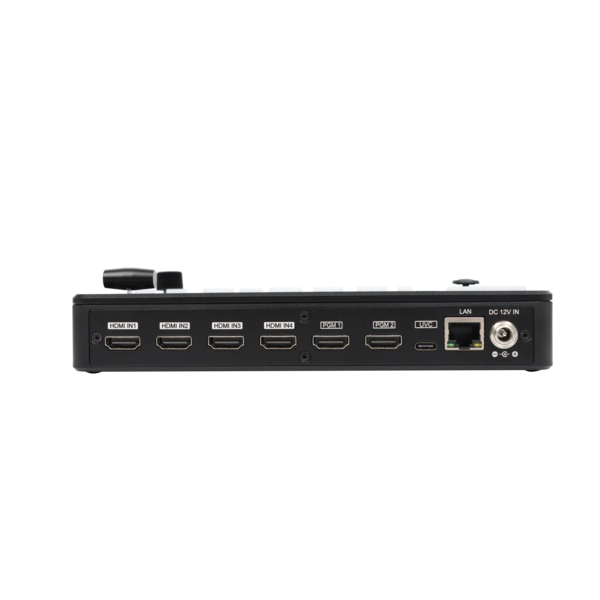

| Video Source | HDMI IN x 4 |
|---|---|
| Video Output | PGM x 2 , UVC x 1 |
| Audio Input | MIC/Line level(3.5mm stereos)x2 |
| USB | USB x 1 |
| Lan | LAN x 1 |
| Power | DC 7~12V ≤12W |
| Switching | T-Bar/AUTO/ CUT |
| Effects | WIPE/MIX/DIP/PAT/STILL/MUTE/FTB |
| Layout | Multi Layout format(see 5.4.3) |
| Keying | Luma Key、Chroma Key |
| Audio Sources | HDMI x 4 and MIC/ Line level x 2 |
| Audio Delay | 0-5s |
| Media | Importable pictures and logos |
×
×
×
