ALF-WU4K HUB( IN ) | 4K60 4×1 SEAMLESS UHD VIDEO & USB 3.0 KVM SWITCHER

  • MAP: $549.99 / EA
  • List Price: $600.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4K60 4×1 SEAMLESS UHD VIDEO & USB 3.0 KVM SWITCHER
4K60 4×1 SEAMLESS UHD VIDEO & USB 3.0 KVM SWITCHER
Click image to enlarge
4K60 4×1 SEAMLESS UHD VIDEO & USB 3.0 KVM SWITCHER
4K60 4×1 SEAMLESS UHD VIDEO & USB 3.0 KVM SWITCHER

ALF-WU4K HUB( IN )
4K60 4×1 SEAMLESS UHD VIDEO & USB 3.0 KVM SWITCHER

  • UM : EA

The ALF-WUK4HUB(IN) is a 4K60 4×1 Seamless UHD Video & USB 3.0 KVM Switcher.

Features:

  • HDCP 2.2 and HDCP x compliant
  • Support 18Gbps uncompressed video bandwidth
  • Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b
  • Support LPCM, DD+, DTS audio pass-through, up to 1 audio channel
  • Seamless switching between input channels and combined multiple images on single UHD monitor
  • Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
  • Seamless switching in single screen display mode
  • Fast switching in multiview display mode
  • Using only 1 set of keyboards, mouse and monitor to control 4 computers
  • Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers
  • Support multimedia, wireless keyboards and mouse
  • Audio de-embedding via analog and optical fiber audio ports
  • Support volume control and independent audio selection
  • Support OSD navigation for advanced setting
  • EDID management

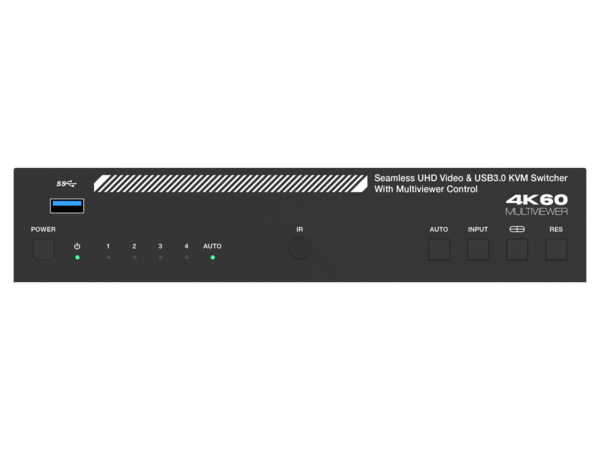

  • Control via front panel buttons, IR remote, keyboard/mouse hotkeys,
  • OSD menu navigation, Controller software, RS-232 commands
  • Compact design for easy and flexible installation
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 / 1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@60Hz 4:4:4
IR Level 5Vp-p
IR Frequency Fixed frequency 38KHz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12bit
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

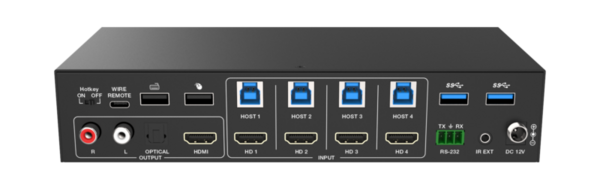

Input ports 4 x HDMI IN [Type A, 19-pin female]
Output ports 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA], 1 x OPTICAL OUTPUT [S/PDIF]
Housing Metal Enclosure
Color Black
Dimensions 220mm [W] x 100mm [D] x 44mm [H]
Weight 443g
Power Supply Input: AC 100 – 240V 50/60Hz
Output DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption 18.48W (Max)
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no-condensing)
