ALF-WUK3A | 3X1 HDMI FULL 4K AUTOMATIC SWITCHER, WITH HDCP 2.2. EDID PASS-THROUGH, DOLBY VISION SUPPORTED, HDCP
ALF-WUK3A
3X1 HDMI FULL 4K AUTOMATIC SWITCHER, WITH HDCP 2.2. EDID PASS-THROUGH, DOLBY VISION SUPPORTED, HDCP
ALF-WUK3A
3X1 HDMI FULL 4K AUTOMATIC SWITCHER, WITH HDCP 2.2. EDID PASS-THROUGH, DOLBY VISION SUPPORTED, HDCP
- UM : EA

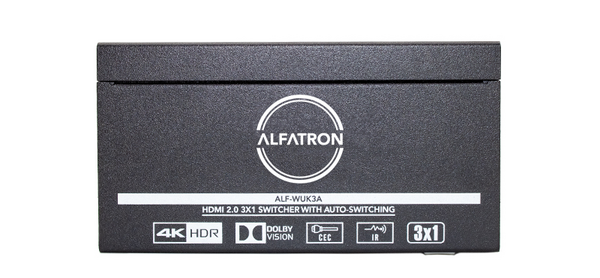

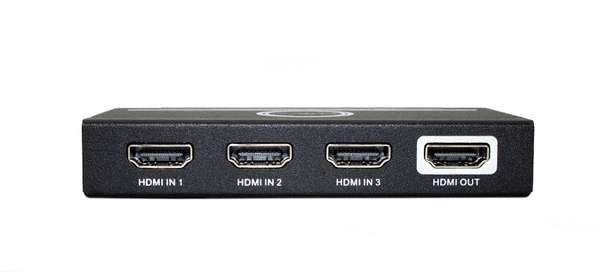

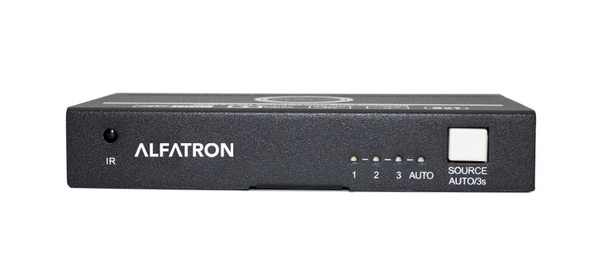

The ALF-WUK3A is a Full 4Kx2K@60Hz 4:4:4 HDMI Auto Switcher with 3 HDMI inputs and 1 HDMI Output. It is controllable by selecting any of the inputs on the front panel or via the IR Remote. It is compliant with HDMI 2.0 and HDCP 2.2. The HDMI Switcher can transmit an uncompressed 4K (at max) signal. Comprehensive audio capacities including PCM, DTS, and DTS-HD. It also provides an ARC audio output socket to transfer ARC audio to ARC speakers and amplifiers.
Features:
- Supports Video resolutions up to 4Kx2K@60Hz 4: 4: 4
- 1080P Supports HDR 10
- High bandwidth: 18Gbps
- Compliant with HDMI 2.0 and capable of transmitting 4K signal
- HDCP 2.2 compliant, supports auto-detecting for input HDCP compliant status
- Supports EDID management, including 5 embedded EDID data, 10 (max) user-definable EDID data, and EDID data automatically captured and copied
- Supports CEC pass-through 3 HDMI inputs Supports Hot-Plug Intuitive indicators for power, switch mode, I/O connection status, and audio output signal Convenient Online firmware update
