ALF-WUK4-8K | 4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K

ALF-WUK4-8K
4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K

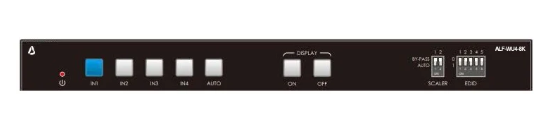

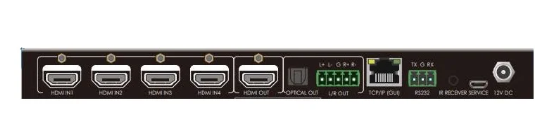

The Alfatron WU4-8K is an HDMI2.1 switcher and scaler with 4 HDMI inputs and one HDMI output. It is Full HDMI 2.1, FRL 48Gbps, and HDR support ensure stable signaling even at the highest bandwidths, HDCP 2.3 compliant. This switcher includes de-embedded audio, scaling, EDID management, and front panel LED indicators for power and signal status.

Features
• HDMI2.1, HDCP2.3 compliant
• 48Gbps Bandwidth (FRL 5)
• Up to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
• Switching time: within 3 seconds
• EDID management via 5 pin DIP switch
• De-embedded audio: 1 x balanced, 1 x Optical
• Downscaling from 8k to 4K, 4K to 1080p to the legacy displayer
• Backlit LED to show the working status
• CEC Display ON/OFF control with backlit button
• RS232, IR and GUI control
• Alfatron or Josawa unique RS232 codes and GUI design
• TCP/IP Control
• CEC Display ON/OFF control with backlit button
