ALF-WUK6-8K | 4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K
4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K
Click image to enlarge
4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K
4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K

ALF-WUK6-8K
4 X 1 SWITCHER HDMI2.1 WITH &AUDIO DE EMBEDDER 8K

  • UM : EA

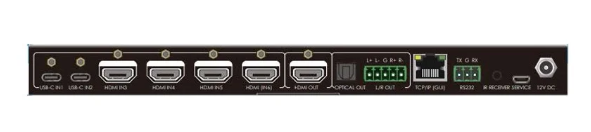

The Alfatron WU6-8K is an HDMI2.1 switcher and scaler with 4 HDMI and 2 USB-C inputs and one HDMI output. It is Full HDMI 2.1, FRL 48Gbps, and HDR support ensure stable signaling even at the highest bandwidths, HDCP 2.3 compliant. This switcher includes de-embedded audio, scaling, EDID management, and front panel LED indicators for power and signal status.



Features
• HDMI2.1, HDCP2.3 compliant
• 48Gbps Bandwidth (FRL 5)
• Up to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
• Switching time: within 3 seconds
• EDID management via 5 pin DIP switch
• De-embedded audio: 1 x balanced, 1 x Optical
• Downscaling from 8k to 4K, 4K to 1080p to the legacy display
• Backlit LED to show the working status
• RS232, IR and GUI control
• TCP/IP Control
• CEC Display ON/OFF control with backlit button
