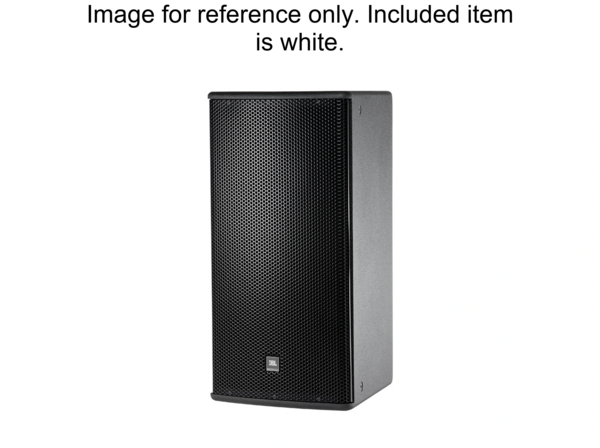

AM5212/00-WH | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/00-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/00-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
AM5212/00-WH is a 12-inch, 2-way loudspeaker featuring a rotatable horn with selectable coverage angles. It includes a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 low-frequency driver with a 300 mm (12 in) diameter. The high-frequency driver is a 2408H-1 compression driver with a 38 mm (1.5 in) exit and voice coil. The system incorporates a large format PT Progressive Transition waveguide providing 60° horizontal by 40° vertical coverage, rotatable to allow use in either vertical or horizontal orientation. The loudspeaker uses high-slope passive networks to minimize band overlap and is designed for controlled off-axis response to facilitate array configurations.
Features:
- 100° x 100° coverage
- 262H-1 Differential Drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
- Available in black, white, and WRC/WRX weather resistant finishes
| Frequency Range | 37 Hz – 20 kHz |
|---|---|
| Frequency Response | 43 Hz – 20 kHz |
| Coverage Pattern | multiple options (60° x 40°, 60° x 60°, 90° x 50°, 100° x 100°, 120° x 60°) |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 122 dB; HF: 131 dB |
| System Sensitivity (1W @ 1m) | Passive mode: 96 dB SPL |
| LF Driver | 1 x JBL 262H-1 12 in driver with 2 in dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 1.5 in exit compression driver with 1.5 in voice coil |
| Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal, 15 degree side angles, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points with M10 threaded hardware |
| Finish | Black DuraFlex finish; white available |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant barrier strip terminals, accept up to 10 AWG wire and 9 mm spade lugs, Speakon in parallel for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
