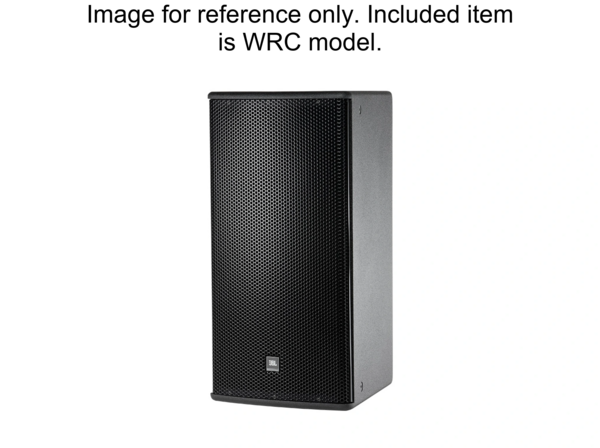

AM5212/00-WRC | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/00-WRC
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/00-WRC
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
- Estimated Weight: 54.0
AM5212/00-WRC is a 12-inch, 2-way full-range loudspeaker system featuring a 100° x 100° rotatable horn. It includes a JBL 262H-1 low-frequency driver with a 300 mm (12 in) diameter, dual voice coil, and dual magnetic gap design. The high-frequency component is a 2408H-1 compression driver with a 38 mm (1.5 in) exit and voice coil. The loudspeaker utilizes a large-format PT Progressive Transition waveguide that provides 60° x 40° coverage and can be rotated to support vertical or horizontal mounting orientations. It incorporates high-slope passive crossover networks to reduce frequency band overlap and maintains controlled off-axis response for improved array configuration.
Features:
- 100° x 100° coverage
- 262H-1 Differential Drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
- Sound quality
- Available in black, white, and WRC/WRX weather resistant finishes
| Frequency Range | 37 Hz – 20 kHz |
|---|---|
| Frequency Response | 43 Hz – 20 kHz |
| Coverage Pattern | 60° x 40° / 60° x 60° / 90° x 50° / 100° x 100° / 120° x 60° |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 122 dB; HF: 131 dB |
| System Sensitivity (1W @ 1m) | Passive mode: 96 dB SPL |
| LF Driver | 1 x JBL 262H-1 12 in driver with 2 in dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 1.5 in exit compression driver, 1.5 in voice coil |
| Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Finish | Black DuraFlex finish, white available upon request |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
