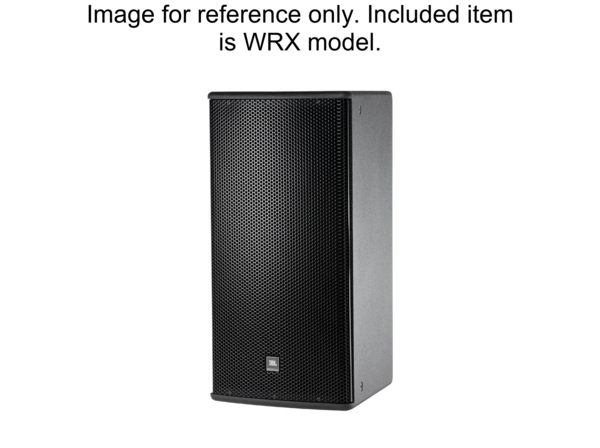

AM5212/00-WRX | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/00-WRX
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/00-WRX
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
- Estimated Weight: 51.0
AM5212/00-WRX is a 12-inch, 2-way loudspeaker system featuring a 100° x 100° rotatable horn. It includes a JBL Differential Drive 262H-1 low frequency driver with dual voice coil and dual magnetic gap construction, measuring 300 mm (12 in), and a 2408H-1 high frequency compression driver with a 38 mm (1.5 in) exit and voice coil. The system employs a PT Progressive Transition waveguide providing 60° x 40° coverage, which can be rotated to allow vertical or horizontal orientation. It uses high-slope passive crossover networks to minimize frequency band overlap and achieve controlled off-axis frequency response for improved array compatibility.
Features:
- 100° x 100° Coverage
- 262H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
- Available in Black, White, and WRC/WRX weather resistant finishes
| Frequency Range | 37 Hz – 20 kHz |
|---|---|
| Frequency Response | 43 Hz – 20 kHz |
| Coverage Pattern | Multiple patterns including 60° x 40°, 60° x 60°, 90° x 50°, 100° x 100°, 120° x 60° |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF 400 W (1600 W peak, 2 hrs), 300 W (1200 W peak, 100 hrs); HF 40 W (160 W peak, 2 hrs) |
| System Power Rating | Passive mode 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode LF 122 dB, HF 131 dB |
| System Sensitivity (1W @ 1m) | Passive mode 96 dB SPL |
| LF Driver | JBL 262H-1 300 mm (12 in) with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver with 38 mm (1.5 in) voice coil |
| Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal, 15 degree side angles, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Finish | Black DuraFlex finish, white available upon request |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals, barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max 9 mm spade lugs, Speakon loops through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
