AM5212/26 | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/26
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/26
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA

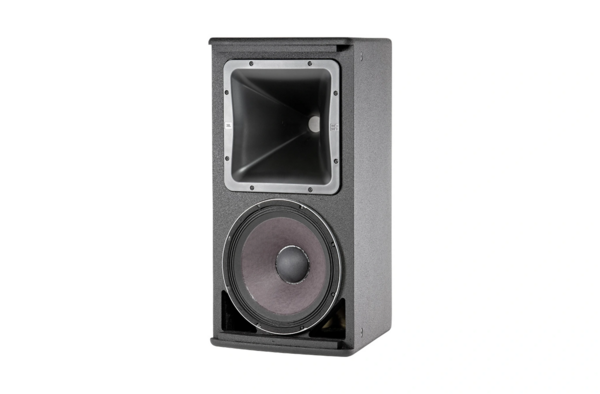

The AM5212/26 is a medium-power, lightweight, two-way full-range loudspeaker system. It incorporates a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 low-frequency driver with a 300 mm (12 in) cone diameter. The high-frequency section uses a 2408H-1 compression driver featuring a 38 mm (1.5 in) exit diameter and 38 mm (1.5 in) voice coil. The loudspeaker includes a large-format PT Progressive Transition waveguide with a rotatable horn providing nominal coverage of 120° horizontal by 60° vertical. Passive high-slope crossover networks reduce band overlap between drivers. The system’s design supports controlled off-axis frequency response to facilitate array configurations.
Features:
- 120° x 60° coverage
- 262H-1 low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide
- Rotatable waveguide
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
- Black
| Frequency Range | 37 Hz – 20 kHz |
|---|---|
| Frequency Response | 43 Hz – 18 kHz |
| Coverage Pattern | 60°x40°/60°x60°/90°x50°/100°x100°/120°x60° |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF 40 W (160 W peak), 2 hrs |
| System Power Rating (Passive mode) | 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m Bi-amp mode) | LF 122 dB, HF 131 dB |
| System Sensitivity (1W @ 1m Passive mode) | 96 dB SPL |
| LF Driver | JBL 262H-1, 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal, 15 degree side angles, 16 mm birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Finish | Black DuraFlex finish |

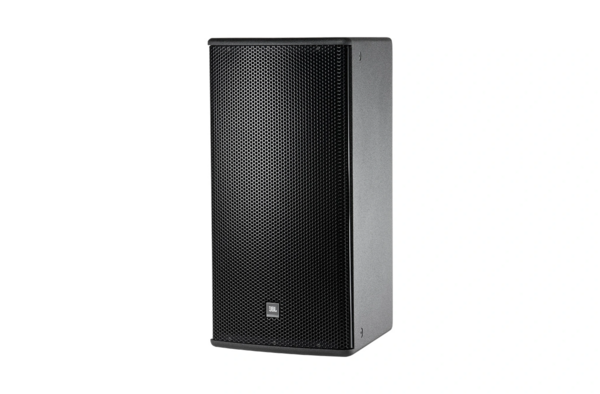

| baffle | Powder coated 14 gauge perforated steel, acoustically transparent black foam backing |

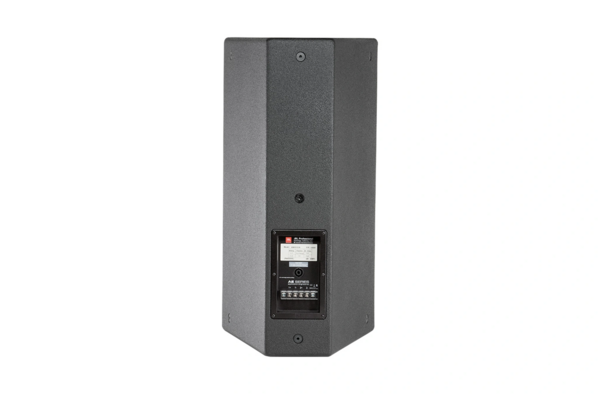

| Input Connector | NL4 Neutrik Speakon and CE-compliant barrier strip terminals, accept up to 5.2 sq mm wire or 9 mm spade lugs, Speakon in parallel with barrier strip for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
