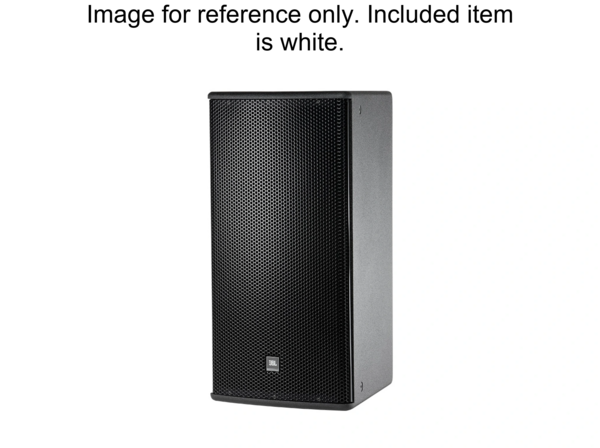

AM5212/26-WH | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/26-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/26-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
AM5212/26-WH is a 12-inch, 2-way full-range loudspeaker system. It features a 262H-1 low-frequency driver with dual voice coil and dual magnetic gap technology, measuring 300 mm (12 inches) in diameter. The high-frequency component is a 2408H-1 compression driver with a 38 mm (1.5 inch) voice coil and exit diameter. The system includes a PT Progressive Transition waveguide that provides a coverage pattern of 60° horizontal by 40° vertical. The waveguide is rotatable, allowing for vertical or horizontal orientation of the loudspeaker. The crossover uses high-slope passive networks to minimize frequency band overlap. The design supports controlled off-axis response to improve array configuration.
Features:
- 120° x 60° Coverage
- 262H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition Waveguide
- Rotatable Waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
- White
| Frequency Range (-10dB) | 37 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° / 60° x 60° / 90° x 50° / 100° x 100° / 120° x 60° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating (Passive mode) | 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m, Bi-amp mode) | LF: 122 dB; HF: 131 dB |
| System Sensitivity (1W @ 1m, Passive mode) | 96 dB SPL |
| LF Driver | 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, within operational band) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Sensitivity (HF Driver) | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Finish | White DuraFlex finish |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier accepts up to 5.2 sq mm (10 AWG) wire or max 9 mm spade lugs; Speakon parallel with barrier for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
