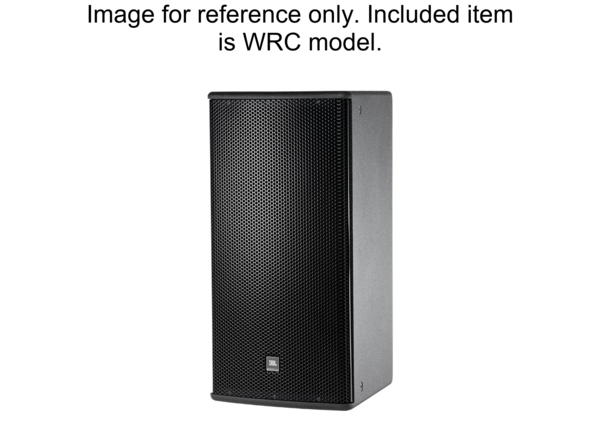

AM5212/26-WRC | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/26-WRC
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/26-WRC
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
- Estimated Weight: 60.0
AM5212/26-WRC is a 12-inch, 2-way loudspeaker system featuring a 120° x 60° rotatable horn. It includes a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 low-frequency driver with a 300 mm (12 in) diameter, and a 2408H-1 high-frequency compression driver with a 38 mm (1.5 in) exit and voice coil. The loudspeaker uses a large-format PT Progressive Transition waveguide that provides 60° x 40° coverage and is rotatable to allow vertical or horizontal orientation. The system incorporates high-slope passive crossover networks to reduce frequency band overlap and offers controlled off-axis response for improved array compatibility.
Features:
- 120° x 60° coverage
- 262H-1 differential drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- Bi-amp and passive mode FIR tuning for optimized frequency and phase response
- WRC weather resistant finishes
| Frequency Range (-10dB) | 37 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° / 60° x 60° / 90° x 50° / 100° x 100° / 120° x 60° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating (Passive mode) | 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m, Bi-amp mode) | LF: 122 dB; HF: 131 dB |
| System Sensitivity (1W @ 1m, Passive mode) | 96 dB SPL |
| LF Driver | JBL 262H-1, 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Sensitivity HF Driver | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal, 15° side angles, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier accepts up to 5.2 sq mm (10 AWG) wire or max 9 mm spade lugs; Speakon parallel with barrier for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
