AM5212/64 | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/64
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/64
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA

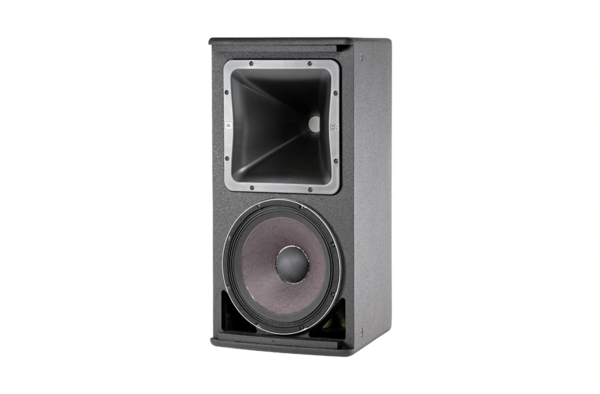

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system. It features a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 low frequency driver with a 300 mm (12 in) diameter. The high frequency driver is a 2408H-1 compression driver with a 38 mm (1.5 in) exit and a 38 mm (1.5 in) voice coil. The loudspeaker uses a large format PT Progressive Transition waveguide that provides dispersion coverage of 60° horizontal by 40° vertical. The waveguide is rotatable, allowing use in either vertical or horizontal orientation. High-slope passive crossover networks minimize frequency band overlap. The design offers controlled off-axis response to optimize array configuration.
Features:
- 60° x 40° Coverage
- 262H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
- Coverage consistency
- Sound quality
- Black
| Frequency Range (-10dB) | 37 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° / 60° x 60° / 90° x 50° / 100° x 100° / 120° x 60° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF 40 W (160 W peak), 2 hrs |
| System Power Rating (Passive mode) | 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode LF 122 dB, HF 131 dB |
| System Sensitivity (1W @ 1m, Passive mode) | 96 dB SPL |
| LF Driver | 1 x JBL 262H-1 300 mm driver with 2 in dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm exit compression driver, 38 mm voice coil |
| Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal with 15° side angles, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Finish | Black DuraFlex finish |

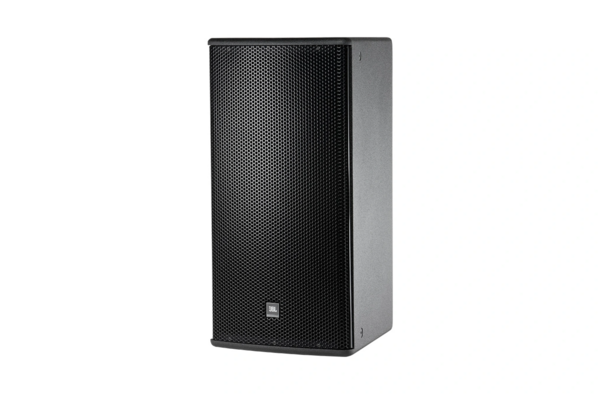

| baffle | Powder-coated 14 gauge perforated steel with acoustically transparent black foam backing |

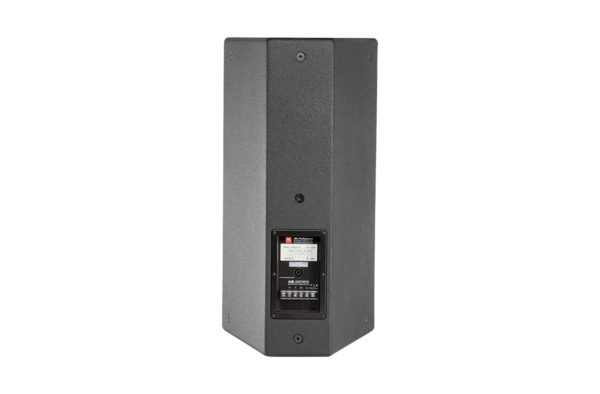

| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or max 9 mm spade lugs; Speakon parallel with barrier strip for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, U-Bracket MTU-3 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
