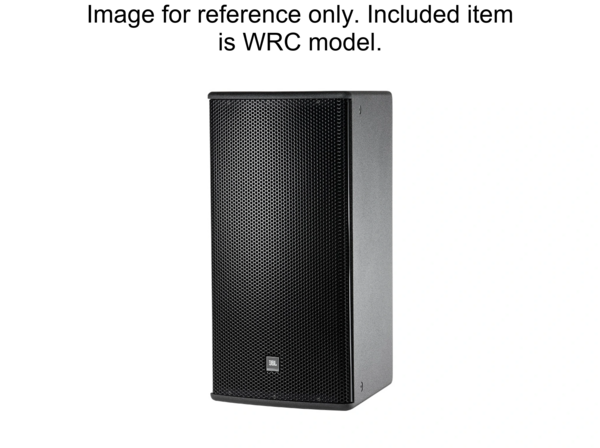

AM5212/64-WRC | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/64-WRC
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/64-WRC
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
- Estimated Weight: 51.0
AM5212/64-WRC is a 12-inch, 2-way loudspeaker system featuring a 60° horizontal by 40° vertical rotatable horn. It includes a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 low-frequency driver with a 300 mm (12 in) diaphragm, and a 2408H-1 high-frequency compression driver with a 38 mm (1.5 in) exit and 38 mm (1.5 in) voice coil. The system employs a large format PT Progressive Transition waveguide that provides controlled coverage and may be oriented vertically or horizontally. High-slope passive crossover networks are used to minimize band overlap and maintain controlled off-axis frequency response.
Features:
- 60° x 40° coverage
- 262H-1 differential drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
| Frequency Range (-10dB) | 37 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 122 dB; HF: 131 dB |
| System Sensitivity (1W @ 1m) | Passive mode: 96 dB SPL |
| LF Driver | 1 x JBL 262H-1 300 mm driver with 50.8 mm dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm exit compression driver, 38 mm voice coil |
| Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, U-Bracket MTU-3 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
