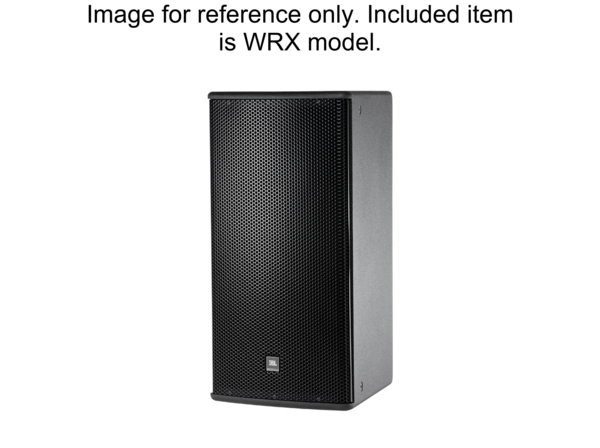

AM5212/64-WRX | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/64-WRX
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/64-WRX
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
- Estimated Weight: 60.0
AM5212/64-WRX is a 12-inch, 2-way full-range loudspeaker system. It features a JBL Differential Drive 262H-1 low-frequency driver with dual voice coils and dual magnetic gaps, measuring 300 mm (12 inches) in diameter. The high-frequency driver is a 2408H-1 compression driver with a 38 mm (1.5 inch) exit and a 38 mm (1.5 inch) voice coil. The loudspeaker includes a large format PT Progressive Transition waveguide providing a rotatable coverage angle of 60° horizontal by 40° vertical, allowing for use in either vertical or horizontal orientation. The system employs high-slope passive crossover networks to minimize band overlap and provides controlled off-axis response to facilitate array configurations.
Features:
- 60° x 40° Coverage
- 262H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition Waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/Passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
| Frequency Range | 37 Hz – 20 kHz |
|---|---|
| Frequency Response | 43 Hz – 18 kHz |
| Coverage Pattern | 60° x 40°, 60° x 60°, 90° x 50°, 100° x 100°, 120° x 60° |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating (Passive) | 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m, Bi-amp) | LF: 122 dB; HF: 131 dB |
| System Sensitivity (1W @ 1m, Passive) | 96 dB SPL |
| LF Driver | 1 x JBL 262H-1 300 mm driver with 50.8 mm dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm exit compression driver, 38 mm voice coil |
| HF Driver Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, U-Bracket MTU-3 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
