AM5212/66 | 12" 2-WAY FULL-RANGE INSTALL PASSIVE LOUDSPEAKER 60 X 60 ROTATABLE HORN

AM5212/66
12" 2-WAY FULL-RANGE INSTALL PASSIVE LOUDSPEAKER 60 X 60 ROTATABLE HORN

MAP: $2,500.00 / EA
List Price: $2,500.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

AM5212/66
12" 2-WAY FULL-RANGE INSTALL PASSIVE LOUDSPEAKER 60 X 60 ROTATABLE HORN

UM : EA
Estimated Weight: 45.0

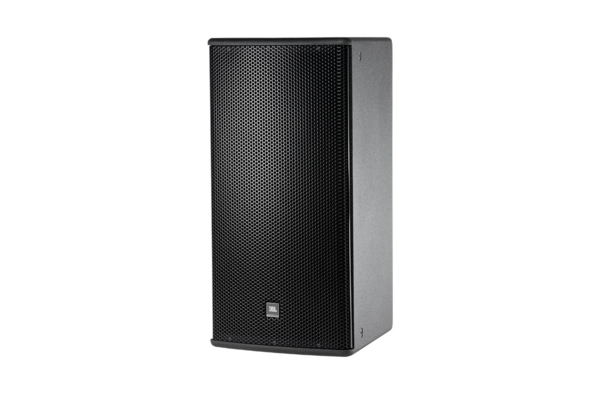

JBL AM5212/66 is a 12-inch 2-way full-range loudspeaker designed for professional installed sound systems that need controlled 60x60 coverage from a compact, medium-power point source cabinet. It is part of JBL Professional’s AE Series and is built for commercial AV, performance, worship, entertainment, and venue audio applications where consistent coverage and system flexibility matter.

The AM5212/66 is a strong fit for integrators working with auditoriums, houses of worship, clubs, theaters, sports facilities, and themed entertainment spaces. Its rotatable horn gives installers more layout flexibility when positioning the cabinet vertically or horizontally, while the 12-inch low-frequency driver and compression driver format support full-range sound reinforcement in fixed installations.

For commercial AV dealers and AVL contractors, the JBL AM5212/66 works well as a main loudspeaker, distributed performance-zone speaker, fill speaker, or part of a larger JBL AE Series installed audio system. It pairs naturally with professional power amplifiers, DSP loudspeaker processing, mounting hardware, subwoofers, and related JBL install loudspeakers.

Features:

60° x 60° Coverage
262H-1 Differential Drive Low-Frequency Driver
2408H-1 High-Frequency Compression Driver
Large PT Progressive Transition Waveguide for pattern control and low distortion
Rotatable Waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Bi-amp and Passive Mode FIR Tuning for optimized frequency and phase response
Coverage Consistency

Frequency Range	37 Hz – 20 kHz
Frequency Response	43 Hz – 20 kHz
Coverage Pattern	60° x 60°
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	1.5 kHz
Transducer Power Rating	LF 400 W (1600 W peak), HF 40 W (160 W peak)
System Power Rating	Passive mode 300 W (1200 W peak)
Maximum SPL	Bi-amp mode LF 122 dB, HF 131 dB
System Sensitivity	Passive mode 96 dB SPL
Nominal Impedance	8 ohms

AM5212/66 PDF
View / Download
