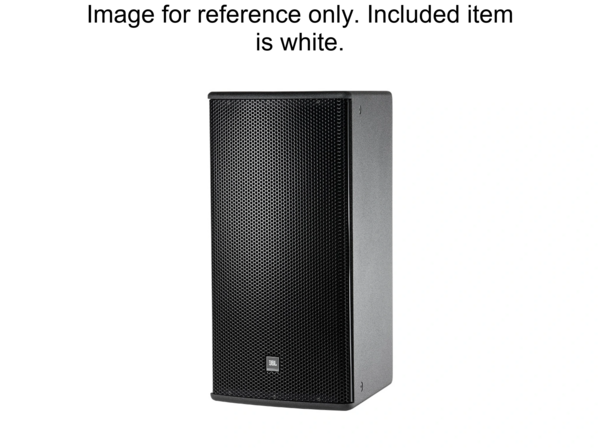

AM5212/66-WH | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/66-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/66-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
The AM5212/66-WH is a 12-inch, 2-way full-range loudspeaker system featuring a 300 mm (12 in) low-frequency driver with dual voice coil and dual magnetic gap design, and a 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression high-frequency driver. The system uses a PT™ Progressive Transition waveguide that provides a 60° x 40° coverage pattern, which is rotatable to allow for vertical or horizontal mounting orientations.
The loudspeaker includes high-slope passive crossover networks to minimize frequency band overlap and delivers controlled off-axis response to facilitate array configurations. The overall design supports medium power operation in a lightweight enclosure.
Features:
- 60° x 60° Coverage
- 262H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Bi-amp and Passive Mode FIR Tuning for optimized frequency and phase response
- White
| Frequency Range (-10dB) | 37 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 43 Hz – 20 kHz |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 122 dB, HF: 131 dB |
| System Sensitivity (1w @ 1m) | Passive mode: 96 dB SPL |
| Nominal Impedance | 8 ohms |
