AM5212/66-WRC | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)

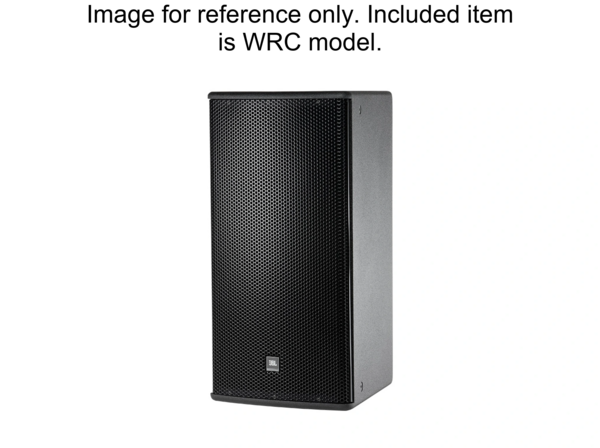

Click image to enlarge

AM5212/66-WRC
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)

  • UM : EA
  • Estimated Weight: 60.0

The AM5212/66-WRC is a 12-inch, 2-way full-range loudspeaker system featuring a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 low-frequency driver with a 300 mm (12 in) diameter. It includes a 2408H-1 high-frequency compression driver with a 38 mm (1.5 in) exit and voice coil. The loudspeaker incorporates a large format PT™ Progressive Transition waveguide providing a 60° x 40° coverage pattern, which is rotatable for vertical or horizontal orientation.

Features:

  • 60° x 60° Coverage
  • 262H-1 Differential Drive Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT Progressive Transition waveguide
  • Rotatable waveguide (vertical/horizontal)
  • Bi-Amp/Passive Switchable
  • FIR Tuning for frequency and phase response
  • Coverage consistency
  • Sound quality
Frequency Range 37 Hz – 20 kHz
Frequency Response 43 Hz – 20 kHz
Coverage Pattern 60° x 60°
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.5 kHz
Transducer Power Rating (AES) LF 400 W (1600 W peak), HF 40 W (160 W peak)
System Power Rating Passive mode 300 W (1200 W peak)
Maximum SPL (1m) LF 122 dB, HF 131 dB
System Sensitivity (1W @ 1m) Passive mode 96 dB SPL
Nominal Impedance 8 ohms
