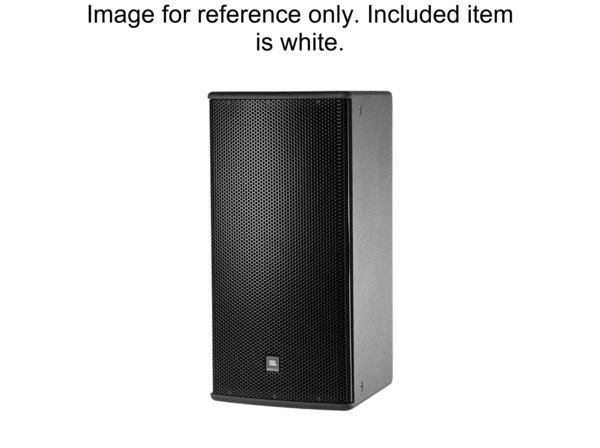

AM5212/95-WH | MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/95-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5212/95-WH
MEDIUM POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
AM5212/95-WH is a 12-inch, 2-way, full-range loudspeaker system featuring a 90° x 50° rotatable horn. It includes a JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 low-frequency driver with a 300 mm (12 in) diameter, and a 2408H-1 compression driver with a 38 mm (1.5 in) exit and 38 mm (1.5 in) voice coil for high-frequency reproduction. The loudspeaker uses a large format PT Progressive Transition waveguide that provides 60° x 40° coverage and is rotatable, allowing vertical or horizontal orientation. The system incorporates high-slope passive networks to minimize band overlap and delivers controlled off-axis response for improved array configuration.
Features:
- 90° x 50° coverage
- 262H-1 differential drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
- White
| Frequency Range | 37 Hz – 20 kHz |
|---|---|
| Frequency Response | 43 Hz – 18 kHz |
| Coverage Pattern | multiple patterns (60° x 40°, 60° x 60°, 90° x 50°, 100° x 100°, 120° x 60°) |
| Crossover Modes | Bi-amp or Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating | LF 400 W (1600 W peak) 2 hrs, 300 W (1200 W peak) 100 hrs, HF 40 W (160 W peak) 2 hrs |
| System Power Rating | Passive mode 300 W (1200 W peak) 100 hrs (IEC rated) |
| Maximum SPL (1m) | LF 122 dB, HF 131 dB (Bi-amp mode) |
| System Sensitivity (1w @ 1m) | Passive mode 96 dB SPL |
| LF Driver | 1 x JBL 262H-1 12 in driver with 2 in dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m) | 97 dB SPL |
| HF Driver | JBL 2408H-1, 1.5 in exit compression driver and voice coil |
| Sensitivity HF | 113 dB SPL |
| Waveguide | PT-H126HF-1 |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-covered barrier strip terminals, loop-through capable |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, U-Bracket MTU-3 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
