AM5215/26 | MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/26
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/26
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA

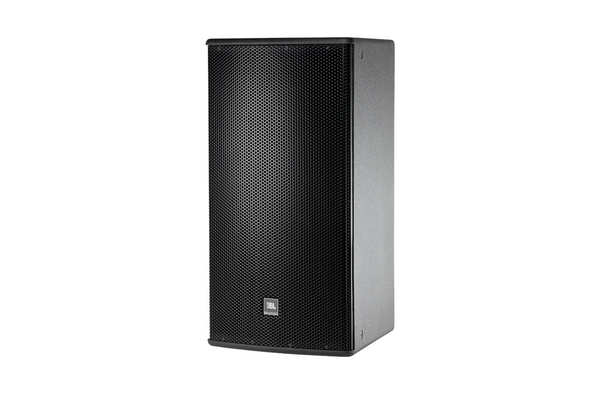

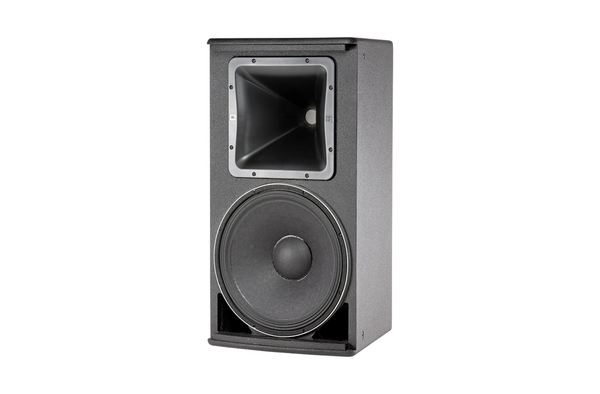

The AM5215/26 is a 15-inch, two-way loudspeaker system featuring a 120° horizontal by 60° vertical rotatable horn. It includes a JBL Differential Drive 265H-1 low-frequency driver with dual voice coil and dual magnetic gap design, measuring 380 mm (15 inches) in diameter. The high-frequency section utilizes a 2408H-1 compression driver with a 38 mm (1.5 inch) exit and a 38 mm (1.5 inch) voice coil. The loudspeaker employs a PT Progressive Transition waveguide that provides various coverage patterns and can be rotated to support vertical or horizontal mounting orientations. It incorporates high-slope passive crossover networks to reduce band overlap and is designed to maintain controlled off-axis frequency response for improved array integration.
Features:
- 120° x 60° coverage
- 265H-1 differential drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
- Black
| Frequency Range (-10dB) | 35 Hz - 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 41 Hz – 18 kHz |
| Coverage Pattern | /64: 60° x 40°, /66: 60° x 60°, /95: 90° x 50°, /26: 120° x 60° |
| Directivity Factor (Q) | 14.5 |
| Directivity Index (DI) | 11.6 dB |
| Crossover Modes | Bi-amp/passive switchable |
| Passive Crossover Frequency | 2 kHz |
| Transducer Power Rating (AES) | LF: 500 W (2000 W peak) 2 hrs, 350 W (1400 W peak) 100 hrs; HF: 40 W (160 W peak) 2 hrs |
| System Power Rating Passive mode | 350 W (1400 W peak) 100 hrs |
| Maximum SPL (1m) Bi-amp mode | LF: 125 dB-SPL cont avg, HF: 131 dB-SPL cont avg |
| System Sensitivity (1W @ 1m) Passive mode | 98 dB SPL |
| LF Driver | JBL 265H-1 380 mm (15 in), 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m within operational band) | 99 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Sensitivity | 115 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Trapezoidal, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant barrier strip terminals, accepts up to 5.2 sq mm wire or 9 mm spade lugs |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
