AM5215/64 | MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/64
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/64
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA

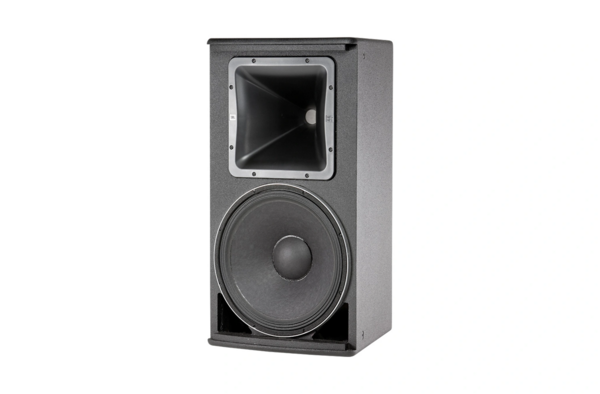

The AM5215/64 is a 15-inch, 2-way loudspeaker system featuring a 380 mm (15 in) low-frequency driver and a 38 mm (1.5 in) exit compression driver. The low-frequency component utilizes a JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 driver. The high-frequency component is equipped with a 2408H-1 driver with a 38 mm (1.5 in) voice coil. The system includes a PT Progressive Transition waveguide with a coverage pattern of 60° x 40°, which is rotatable for vertical or horizontal orientation. Passive high-slope crossover networks reduce frequency band overlap. The design provides controlled off-axis response to support array configurations.
Features:
- 60° x 40° Coverage
- 265H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
- Coverage consistency
- Black
| Frequency Range | 35 Hz - 20 kHz |
|---|---|
| Frequency Response | 41 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° / 60° x 60° / 90° x 50° / 120° x 60° |
| Directivity Factor (Q) | 14.5 |
| Directivity Index (DI) | 11.6 dB |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 2 kHz |
| Transducer Power Rating (AES) | LF: 500 W (2000 W peak), 2 hrs; 350 W (1400 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating | Passive mode: 350 W (1400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 125 dB-SPL cont avg; HF: 131 dB-SPL cont avg |
| System Sensitivity (1W @ 1m) | Passive mode: 98 dB SPL |
| LF Driver | 1 x JBL 265H-1 15 in driver with 2 in dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m) | 99 dB SPL |
| HF Driver | JBL 2408H-1 1.5 in exit compression driver, 1.5 in voice coil |
| Sensitivity (HF) | 115 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points with M10 threaded hardware |

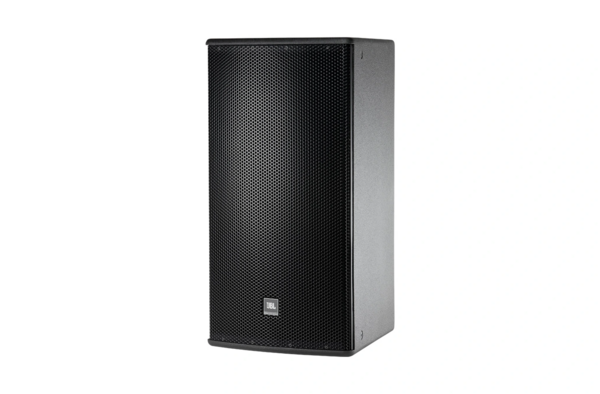

| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or max 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
