AM5215/66 | MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/66
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/66
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA

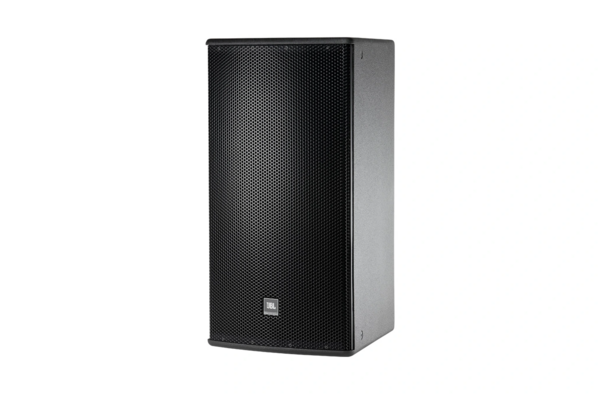

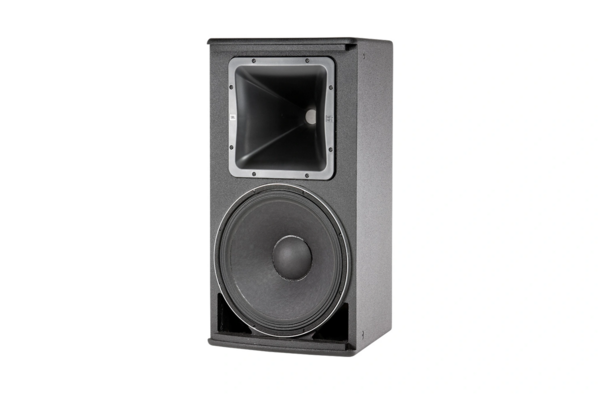

AM5215/66 is a 15-inch, 2-way full-range loudspeaker system. It features a JBL Differential Drive 265H-1 low-frequency driver with dual voice coils and dual magnetic gaps, measuring 380 mm (15 in) in diameter. The high-frequency component is a 2408H-1 compression driver with a 38 mm (1.5 in) exit and a 38 mm (1.5 in) voice coil. The loudspeaker includes a large format PT Progressive Transition waveguide with a rotatable 60° x 60° coverage pattern, allowing for vertical or horizontal orientation. High-slope passive crossover networks are used to minimize band overlap between drivers. The design provides controlled off-axis frequency response suitable for array configurations.
Features:
- 60° x 60° Coverage
- 265H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
- Coverage consistency
- Black
| Frequency Range | 35 Hz - 20 kHz |
|---|---|
| Frequency Response | 41 Hz – 20 kHz |
| Coverage Pattern | 60° x 40° / 60° x 60° / 90° x 50° / 120° x 60° |
| Directivity Factor (Q) | 14.5 |
| Directivity Index (DI) | 11.6 dB |
| Crossover Modes | Bi-amp/passive switchable |
| Passive Crossover Frequency | 2 kHz |
| Transducer Power Rating (AES) | LF 500 W (2000 W peak), HF 40 W (160 W peak) |
| System Power Rating | Passive mode 350 W (1400 W peak) |
| Maximum SPL (1m) | LF 125 dB-SPL cont avg, HF 131 dB-SPL cont avg |
| System Sensitivity (1w @ 1m) | Passive mode 98 dB SPL |
| LF Driver | 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 99 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver |
| Sensitivity | 115 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent foam |
| Input Connector | NL4 Neutrik Speakon and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
