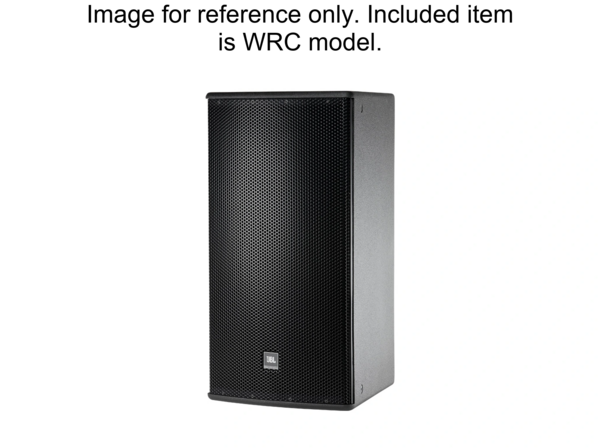

AM5215/66-WRC | MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/66-WRC
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/66-WRC
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
- Estimated Weight: 70.0
The AM5215/66-WRC is a full-range, 2-way loudspeaker system featuring a 15-inch (380 mm) low-frequency driver with JBL Differential Drive dual voice coil and dual magnetic gap (model 265H-1). The high-frequency section includes a 38 mm (1.5 inch) exit compression driver (model 2408H-1) with a 38 mm (1.5 inch) voice coil. It incorporates a large format PT Progressive Transition waveguide with 60° by 60° coverage, which is rotatable for vertical or horizontal orientation. The system uses high-slope passive crossover networks to minimize band overlap between drivers. The loudspeaker provides controlled off-axis response to support configurable array setups.
Features:
- 60° x 60° Coverage
- 265H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/Passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
| Frequency Range | 35 Hz - 20 kHz |
|---|---|
| Frequency Response | 41 Hz – 20 kHz |
| Coverage Pattern | 60° x 40° / 60° x 60° / 90° x 50° / 120° x 60° |
| Directivity Factor (Q) | 14.5 |
| Directivity Index (DI) | 11.6 dB |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 2 kHz |
| Transducer Power Rating (AES) | LF: 500W (2000W peak), 2 hrs; 350W (1400W peak), 100 hrs; HF: 40W (160W peak), 2 hrs |
| System Power Rating | Passive mode: 350W (1400W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 125 dB-SPL cont avg; HF: 131 dB-SPL cont avg |
| System Sensitivity (1W @ 1m) | Passive mode: 98 dB SPL |
| LF Driver | 1 x JBL 265H-1 380mm (15 in) driver with 50.8mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 99 dB SPL |
| HF Driver | JBL 2408H-1, 38mm (1.5 in) exit compression driver, 38mm (1.5 in) voice coil |
| Sensitivity | 115 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Trapezoidal with 15 degree side angles, 16mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max 9mm spade lugs; Speakon in parallel with barrier strip for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
