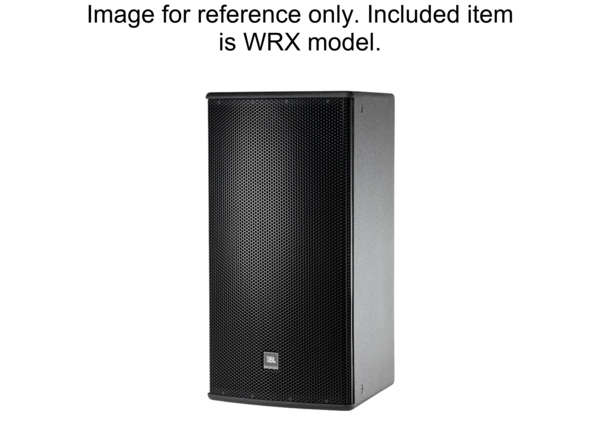

AM5215/66-WRX | MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/66-WRX
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/66-WRX
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA
- Estimated Weight: 62.8
AM5215/66-WRX is a 15-inch, 2-way full-range loudspeaker system. It includes a JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 low frequency driver with a 380 mm (15 in) diameter, and a 2408H-1 high frequency compression driver with a 38 mm (1.5 in) exit and voice coil diameter. The system features a PT Progressive Transition rotatable waveguide with a coverage pattern of 60° x 60°, allowing use in both vertical and horizontal orientations. It uses high-slope passive crossover networks to minimize frequency band overlap. The design provides controlled off-axis response suitable for array configurations.
Features:
- 60° x 60° coverage
- 265H-1 Differential Drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
| Frequency Range | 35 Hz - 20 kHz |
|---|---|
| Frequency Response | 41 Hz – 20 kHz |
| Coverage Pattern | 60° x 40°, 60° x 60°, 90° x 50°, 120° x 60° |
| Directivity Factor (Q) | 14.5 |
| Directivity Index (DI) | 11.6 dB |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 2 kHz |
| Transducer Power Rating (AES) | LF 500 W (2000 W peak), 2 hrs; 350 W (1400 W peak), 100 hrs; HF 40 W (160 W peak), 2 hrs |
| System Power Rating (Passive mode) | 350 W (1400 W peak), 100 hrs |
| Maximum SPL (1m, Bi-amp mode) | LF 125 dB SPL continuous average; HF 131 dB SPL continuous average |
| System Sensitivity (1w @ 1m, Passive mode) | 98 dB SPL |
| LF Driver | JBL 265H-1, 380 mm (15 in) with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m) | 99 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) compression driver and voice coil |
| Sensitivity (HF) | 115 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam |
| Input Connector | NL4 Neutrik Speakon and CE-compliant barrier strip terminals with up to 5.2 sq mm wire or 9 mm spade lugs; Speakon in parallel for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, U-Bracket MTU-1 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
