AM5215/95 | MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/95
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
AM5215/95
MEDIUM POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 50.8 MM (2-IN)
- UM : EA

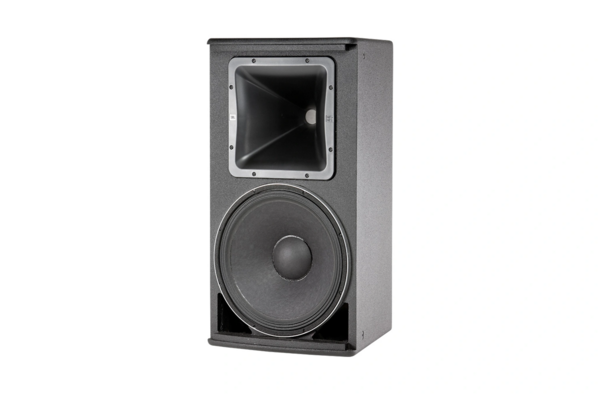

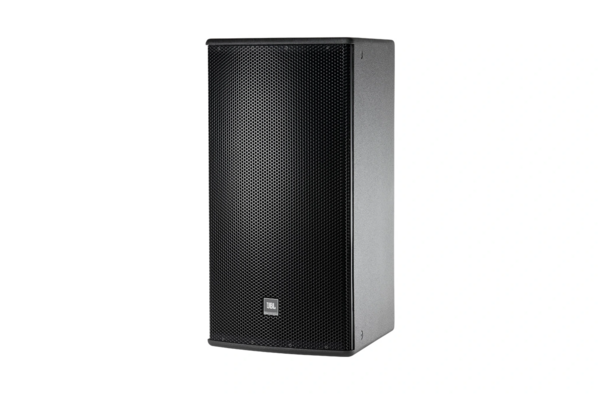

The AM5215/95 is a two-way, full-range loudspeaker system featuring a 380 mm (15 in) low-frequency driver and a 38 mm (1.5 in) exit compression driver. The low-frequency driver uses JBL Differential Drive technology with dual voice coils and dual magnetic gaps (model 265H-1). The high-frequency section employs a 2408H-1 compression driver with a 38 mm (1.5 in) voice coil. The loudspeaker integrates a large format PT Progressive Transition waveguide, providing coverage patterns of 90° horizontal by 50° vertical. The waveguide is rotatable, allowing the loudspeaker to be configured in either vertical or horizontal orientation. The system includes high-slope passive crossover networks designed to minimize frequency band overlap. Off-axis frequency response is controlled to facilitate array configurations.
Features:
- 90° x 50° coverage
- 265H-1 differential drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT progressive transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- Black
| Frequency Range | 35 Hz - 20 kHz |
|---|---|
| Frequency Response | 41 Hz – 18 kHz |
| Coverage Pattern | 64: 60° x 40°, 66: 60° x 60°, 95: 90° x 50°, 26: 120° x 60° |
| Directivity Factor (Q) | 14.5 |
| Directivity Index (DI) | 11.6 dB |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 2 kHz |
| Transducer Power Rating (AES) | LF: 500 W (2000 W peak), 2 hrs; 350 W (1400 W peak), 100 hrs; HF: 40 W (160 W peak), 2 hrs |
| System Power Rating | Passive mode: 350 W (1400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 125 dB SPL cont avg; HF: 131 dB SPL cont avg |
| System Sensitivity (1w @ 1m) | Passive mode: 98 dB SPL |
| LF Driver | JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil |
| Nominal Impedance | 8ohms |
| Sensitivity (1W @ 1m, operational band) | 99 dB SPL |
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Sensitivity | 115 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers; U-Bracket MTU-1 |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
