AM7200/64 | HIGH POWER MID-HIGH FREQ LOUDSPEAKER WITH JBL CMCD-82H MID DRIVER, AND 2432H HIGH FREQ 38MM (1.5 IN)

  • MAP: $3,986.10 / EA
  • List Price: $3,986.10 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH POWER MID-HIGH FREQ LOUDSPEAKER WITH JBL CMCD-82H MID DRIVER, AND 2432H HIGH FREQ 38MM (1.5 IN)

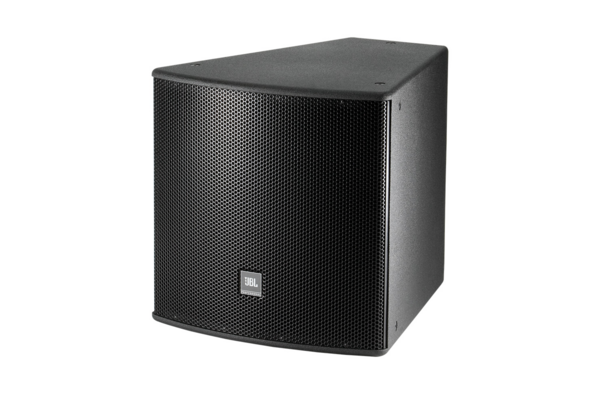

Click image to enlarge

AM7200/64
HIGH POWER MID-HIGH FREQ LOUDSPEAKER WITH JBL CMCD-82H MID DRIVER, AND 2432H HIGH FREQ 38MM (1.5 IN)

  • UM : EA

The AM7200/64 is a mid-high frequency loudspeaker system featuring one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil high-frequency compression driver. It utilizes a multi-band PT Progressive Transition waveguide that offers controlled coverage and can be rotated for cabinet orientation in either horizontal or vertical positions.

Features:

  • CMCD Cone Midrange Compression Driver with low distortion and improved sensitivity
  • 2432H High-Frequency Compression Driver
  • PT Progressive Transition Waveguide for excellent pattern control
  • Bi-Amp/Passive Switchable
  • Suitable for performing arts facilities
  • Ideal for theatrical sound design
  • Designed for auditoriums
  • Houses of worship compatible
  • Used in live clubs
  • Suitable for dance clubs and discotheques
  • Appropriate for sports facilities
  • Designed for themed entertainment venues
  • Voice-only PA applications (without LF or subwoofer reinforcement)
  • Delay fill applications (without LF or subwoofer reinforcement)
  • Extended bandwidth and improved phase coherency
Frequency Range (-10dB) 260 Hz – 20 kHz
Frequency Response (±3 dB) 330 Hz – 18 kHz
Coverage Pattern 60° x 40° (AM7200/64), 90° x 50° (AM7200/95), rotatable waveguide
Crossover Modes Bi-amp and passive switchable
Crossover Frequency 2.3 kHz
Transducer Power Rating (AES) MF 350 W (1400 W peak), HF 100 W (400 W peak), 2 hours
System Power Rating MF/HF 200 W (800 W peak), 100 hours
Maximum SPL (1m) Bi-amp mode MF 133 dB, HF 135 dB; Passive mode MF/HF 133 dB
System Sensitivity (1W @ 1m) Passive mode 108 dB SPL
Nominal Impedance 8 ohms
