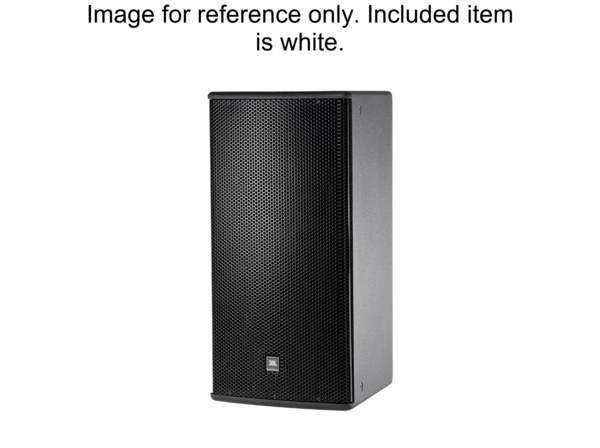

AM7212/00-WH | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/00-WH
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/00-WH
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
- UM : EA
AM7212/00-WH is a 12-inch, 2-way loudspeaker system designed for full-range audio reproduction. It features a JBL 2262H low-frequency driver with a 300 mm (12 in) diameter, dual voice coil, and dual magnetic gap design. The high-frequency section includes a 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The system incorporates a large-format Progressive Transition waveguide with a 100° x 100° coverage pattern, which is rotatable to support both vertical and horizontal mounting orientations. High-slope passive crossover networks are used to minimize band overlap, and the design provides controlled off-axis response for improved array configurations.
Features:
- 100° x 100° coverage
- 2262H differential drive low-frequency driver
- 2432H high-frequency compression driver
- Large PT progressive transition waveguide
- Rotatable waveguide (vertical or horizontal)
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- White
| Frequency Range | 36 Hz - 20 kHz |
|---|---|
| Frequency Response | 42 Hz - 20 kHz |
| Coverage | 60° x 40° / 60° x 60° / 90° x 50° / 100° x 100° / 120° x 60° |
| LF Driver | 1 x JBL 2262H 12 in Differential Drive driver with 3 in dual voice coil |
| HF Driver | JBL 2432H, 1.5 in compression driver, 3 in voice coil |
| System Type | 12 inch Two-Way, High Power, Full Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hrs; 700 W (2800 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 126 dB-SPL continuous avg (132 dB peak), HF: 131 dB-SPL continuous avg (137 dB peak); Passive mode: 123 dB-SPL continuous avg (129 dB peak) |
| System Sensitivity (1W @ 1m) | Passive mode: 95 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points with M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
