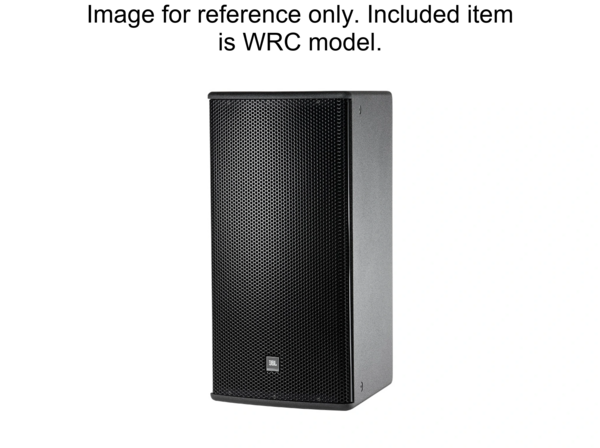

AM7212/00-WRC | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)
AM7212/00-WRC
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)
AM7212/00-WRC
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)
- UM : EA
- Estimated Weight: 61.0
AM7212/00-WRC is a 12-inch, 2-way full-range loudspeaker system featuring a 2262H low-frequency driver with dual voice coil and dual magnetic gap technology and a 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. It includes a rotatable Progressive Transition waveguide providing 100° x 100° coverage patterns suitable for vertical or horizontal orientation. The system employs high-slope passive crossover networks to reduce band overlap and delivers controlled off-axis frequency response to support array configurations.
Features:
- 100° x 100° Coverage
- 2262H Differential Drive Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
- Coverage consistency
- WRC finish
| Frequency Range | 36 Hz - 20 kHz |
|---|---|
| Frequency Response | 42 Hz - 20 kHz |
| Coverage | 60° x 40° / 60° x 60° / 90° x 50° / 100° x 100° / 120° x 60° |
| LF Driver | 1 x JBL 2262H 12 in Differential Drive driver with 3 in dual voice coil |
| HF Driver | JBL 2432H, 1.5 in exit compression driver, 3 in voice coil |
| System Type | 12" Two-Way, High Power, Full-Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr; 700 W (2800 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating Passive mode | 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode LF: 126 dB cont avg (132 dB peak); HF: 131 dB cont avg (137 dB peak); Passive mode: 123 dB cont avg (129 dB peak) |
| System Sensitivity (1W @ 1m) | Passive mode 95 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
