AM7212/26 | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)
AM7212/26
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)

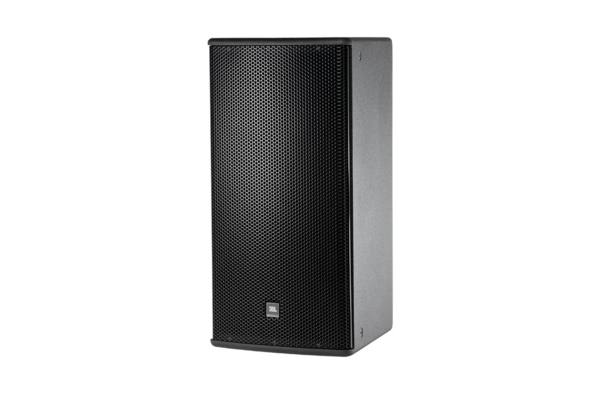

Click image to enlarge
AM7212/26
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)
- UM : EA
The AM7212/26 is a 12-inch, 2-way full-range loudspeaker system featuring a JBL Differential Drive dual voice coil, dual magnetic gap 2262H low-frequency driver (300 mm/12 in), and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. It includes a rotatable Progressive Transition waveguide providing a coverage pattern of 120° x 60°, allowing for vertical or horizontal mounting orientations.
Features:
- 120° x 60° Coverage
- 2262H Differential Drive Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT Progressive Transition Waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp and Passive Mode switchable
- FIR Tuning for optimized frequency and phase response
- Coverage consistency
| Frequency Range | 36 Hz - 20 kHz |
|---|---|
| Frequency Response | 42 Hz - 18 kHz |
| Coverage | 60° x 60° / 60° x 40° / 90° x 50° / 100° x 100° / 120° x 60° |
| LF Driver | 1 x JBL 2262H 12 in Differential Drive® driver with 3 in dual voice coil |
| HF Driver | JBL 2432H, 1.5 in exit compression driver, 3 in voice coil |
| System Type | 12 inch Two-Way, High Power, Full-Range |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF 1000 W (4000 W peak), HF 100 W (400 W peak) |
| Nominal Impedance | 8 ohms |
×
