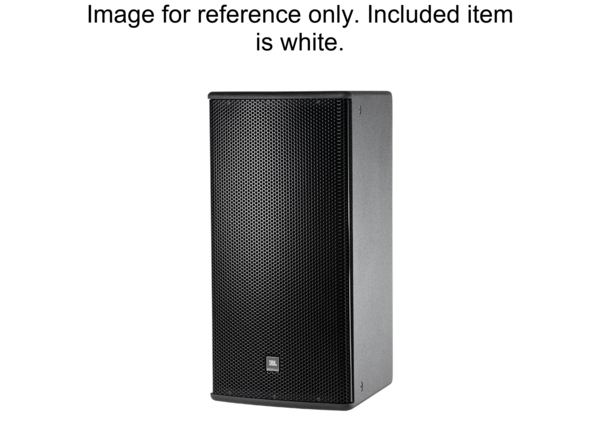

AM7212/26-WH | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)

  • MAP: $3,660.00 / EA
  • List Price: $3,660.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)
Click image to enlarge

AM7212/26-WH
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN)

  • UM : EA

AM7212/26-WH is a 12-inch, 2-way loudspeaker system featuring a JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver (300 mm/12 in) and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. The system includes a large-format Progressive Transition waveguide with a 120° horizontal by 60° vertical coverage pattern, which is rotatable to allow vertical or horizontal mounting orientations.

Features:

  • 120° x 60° coverage
  • 2262H Differential Drive low-frequency driver
  • 2432H high-frequency compression driver
  • Large PT Progressive Transition waveguide for pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-amp/passive switchable
  • FIR tuning for optimized frequency and phase response
  • Coverage consistency
Frequency Range 36 Hz - 20 kHz
Frequency Response 42 Hz - 18 kHz
Coverage 60° x 40°, 60° x 60°, 90° x 50°, 100° x 100°, 120° x 60°
LF Driver 1 x JBL 2262H 12 in Differential Drive® with 3 in dual voice coil
HF Driver JBL 2432H 1.5 in exit compression driver, 3 in voice coil
System Type 12 in Two-Way High Power Full-Range
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF - 1000 W (4000 W peak), 2 hrs; 700 W (2800 W peak), 100 hrs; HF - 100 W (400 W peak), 2 hrs
Maximum SPL (1m) Bi-amp mode - LF: 126 dB-SPL cont avg (132 dB peak), HF: 133 dB-SPL cont avg (139 dB peak); Passive mode - 123 dB-SPL cont avg (129 dB peak)
