AM7212/26-WRC | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL

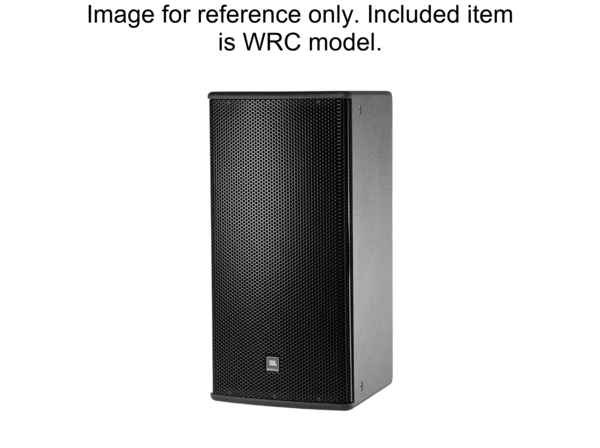

Click image to enlarge

AM7212/26-WRC
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL

  • UM : EA
  • Estimated Weight: 66.0

The AM7212/26-WRC is a 12-inch, 2-way loudspeaker system featuring a JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver with a 300 mm (12 in) diameter. The high-frequency component is a 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The system incorporates a large format Progressive Transition waveguide with rotatable coverage angles of 120° x 60°, allowing operation in both vertical and horizontal orientations.

Features:

  • 120° x 60° coverage
  • 2262H differential drive low-frequency driver
  • 2432H high-frequency compression driver
  • Large PT progressive transition waveguide for pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-amp/passive switchable
  • FIR tuning for optimized frequency and phase response
  • Coverage consistency
Frequency Range 36 Hz - 20 kHz
Frequency Response 42 Hz - 18 kHz
Coverage 60° x 40° / 60° x 60° / 90° x 50° / 100° x 100° / 120° x 60°
LF Driver 1 x JBL 2262H 12 in Differential Drive driver with 3 in dual voice coil
HF Driver JBL 2432H, 1.5 in exit compression driver, 3 in voice coil
System Type 12 in Two-Way, High Power, Full-Range
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr; 700 W (2800 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs
Maximum SPL (1m) Bi-amp mode: LF: 126 dB continuous avg (132 dB peak); HF: 133 dB continuous avg (139 dB peak); Passive mode: 123 dB continuous avg (129 dB peak)
