AM7212/26-WRX | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
Click image to enlarge

AM7212/26-WRX
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL

  • UM : EA
  • Estimated Weight: 56.0

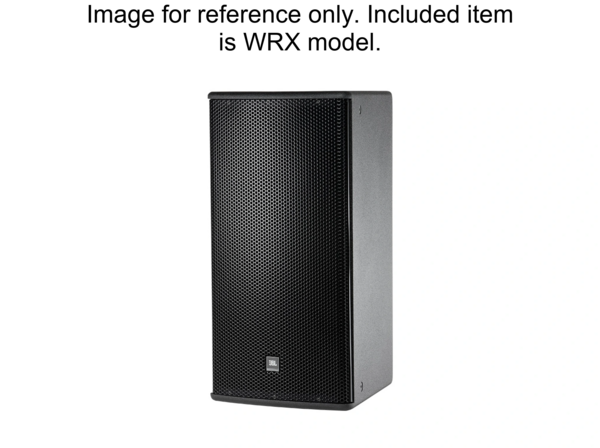

The AM7212/26-WRX is a 12-inch, 2-way full-range loudspeaker system featuring a JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver (300 mm / 12 in) and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. It incorporates a large format Progressive Transition waveguide that provides coverage patterns of 120° x 60°, with the waveguide being rotatable for vertical or horizontal orientation.

Features:

  • 120° x 60° coverage
  • 2262H low-frequency driver
  • 2432H high-frequency compression driver
  • Large PT progressive transition waveguide
  • Rotatable waveguide (vertical/horizontal orientation)
  • Bi-amp/passive switchable
  • FIR tuning for optimized frequency and phase response
  • Coverage consistency
  • Low distortion
  • Pattern control
Frequency Range 36 Hz - 20 kHz
Frequency Response 42 Hz - 18 kHz
Coverage multiple angles (60°x40°, 60°x60°, 90°x50°, 100°x100°, 120°x60°)
LF Driver 12 in Differential Drive dual voice coil
HF Driver 1.5 in exit compression driver, 3 in voice coil
System Type 12 in two-way high power full-range
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Power Ratings LF 1000 W AES, HF 100 W AES, Passive mode 600 W
Nominal Impedance 8 ohms (LF, HF, system)
