AM7212/64 | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/64
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/64
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
- UM : EA

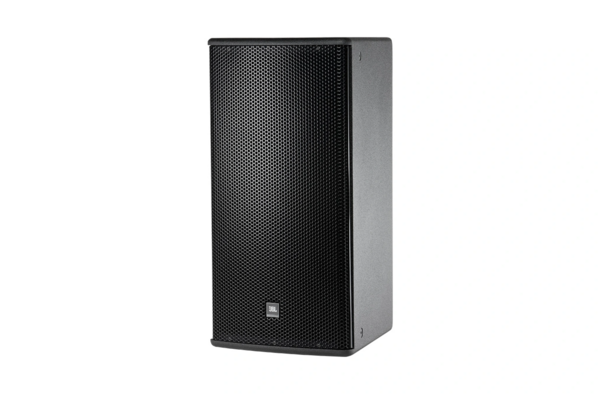

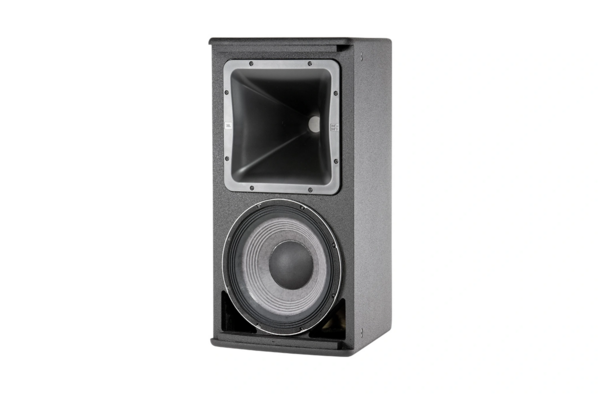

AM7212/64 is a 12-inch, 2-way full-range loudspeaker system with a rotatable horn adjustable between 60° x 40° coverage patterns. It features a JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver (300 mm / 12 in) and a 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil for high frequencies. The loudspeaker includes a large-format Progressive Transition waveguide that provides configurable coverage and supports both vertical and horizontal orientations. Passive high-slope crossover networks are integrated to reduce frequency band overlap. The system is engineered for controlled off-axis response to support array configurations.
Features:
- 60° x 40° Coverage
- 2262H Differential Drive Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT Progressive Transition Waveguide for pattern control and low distortion
- Rotatable Waveguide for vertical or horizontal orientation
- Bi-amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
- Coverage Consistency
- Black
| Frequency Range | 36 Hz - 20 kHz |
|---|---|
| Frequency Response | 42 Hz - 18 kHz |
| Coverage | 64: 60° x 40°, 66: 60° x 60°, 95: 90° x 50°, 00: 100° x 100°, 26: 120° x 60° |
| LF Driver | 1 x JBL 2262H 12 in Differential Drive driver with 3 in dual voice coil |
| HF Driver | JBL 2432H 1.5 in exit compression driver, 3 in voice coil |
| System Type | 12 in Two-Way, High Power, Full-Range |

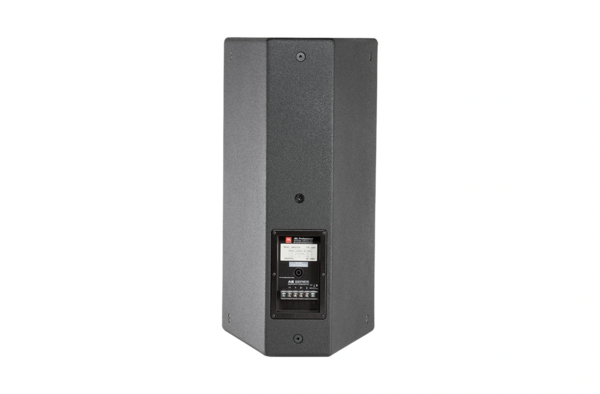

| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr; 700 W (2800 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 126 dB cont avg (132 dB peak), HF: 135 dB cont avg (141 dB peak); Passive mode: 123 dB cont avg (129 dB peak) |
| System Sensitivity (1w @ 1m) | Passive mode: 95 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
