AM7212/66 | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/66
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/66
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
- UM : EA

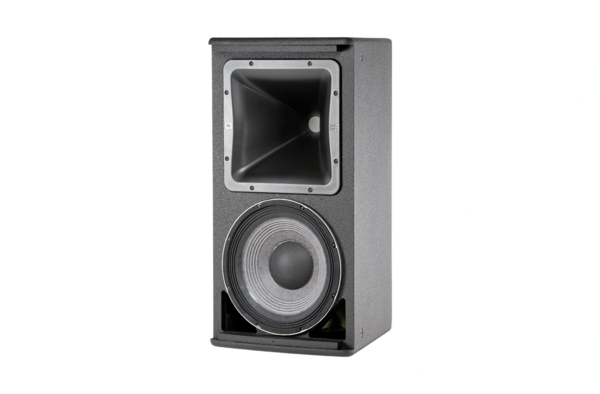

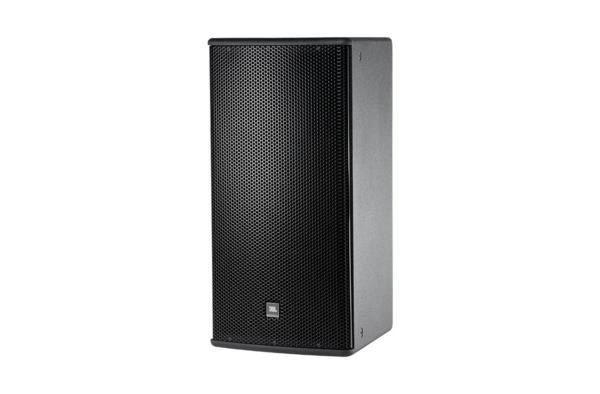

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
FEATURES
- - 2262H Differential Drive® Low- Frequency Driver
- - 2432H High-Frequency Compression Driver
- - Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- - Rotatable waveguide for vertical or horizontal orientation
- - Bi-Amp/Passive Switchable
- - Available in Black, White and WRC/WRX finishes
