AM7212/66-WH | HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/66-WH
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7212/66-WH
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
- UM : EA

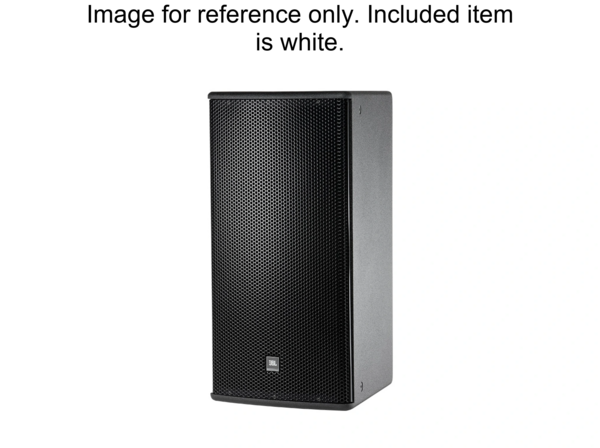

AM7212/66-WH is a 12-inch, two-way loudspeaker system featuring a JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver with a 300 mm (12 in) diameter. It includes a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The loudspeaker incorporates a rotatable Progressive Transition waveguide with a 60° x 60° coverage pattern, allowing for use in vertical or horizontal orientation. The system uses high-slope passive crossover networks to minimize frequency band overlap and provides controlled off-axis response for improved array performance.
Features:
- 60° x 60° coverage
- 2262H differential drive low-frequency driver
- 2432H high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- White
| Frequency Range | 36 Hz - 20 kHz |
|---|---|
| Frequency Response | 42 Hz - 20 kHz |
| Coverage | 60° x 60° |
| LF Driver | JBL 2262H 12 in Differential Drive driver with 3 in dual voice coil |
| HF Driver | JBL 2432H 1.5 in exit compression driver with 3 in voice coil |
| System Type | 12" Two-Way High Power Full-Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), HF: 100 W (400 W peak) |
| System Power Rating (Passive mode) | 600 W (2400 W peak) |
| Maximum SPL (1m) | Bi-amp mode LF: 126 dB cont avg (132 dB peak), HF: 134 dB cont avg (140 dB peak), Passive mode: 123 dB cont avg (129 dB peak) |
| System Sensitivity (1W @ 1m) | Passive mode 95 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
