AM7212/95
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75 MM (3-IN) DUAL
AM7212/95
HIGH POWER 12” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75 MM (3-IN) DUAL
- UM : EA

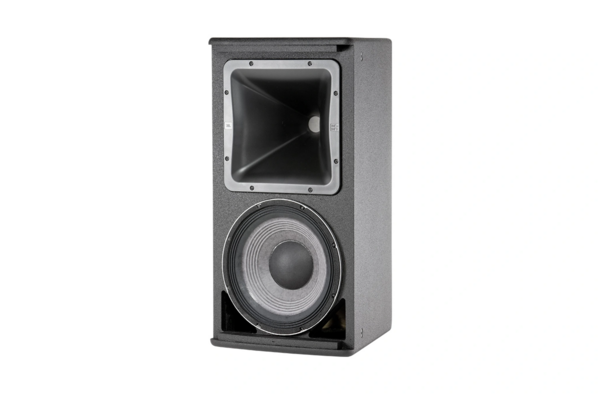

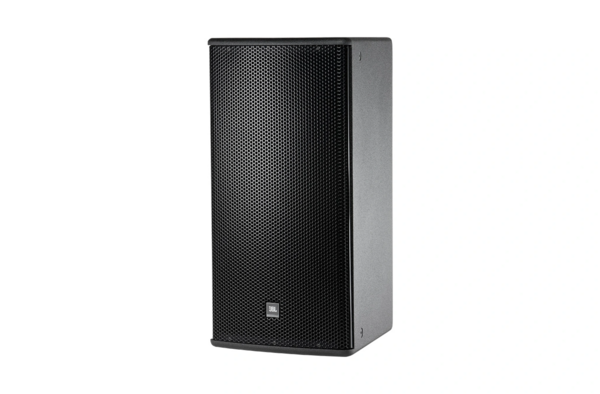

AM7212/95 is a 12-inch, 2-way full-range loudspeaker system featuring a JBL 2262H low-frequency driver with dual voice coils and dual magnetic gaps, and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. The loudspeaker includes a rotatable large-format Progressive Transition waveguide providing selectable 90° x 50° coverage patterns for vertical or horizontal orientation. The system incorporates high-slope passive crossover networks to minimize band overlap and offers controlled off-axis response for improved array performance.
Features:
- 90° x 50° coverage
- 2262H differential drive low-frequency driver
- 2432H high-frequency compression driver
- Large PT progressive transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Black
| Frequency Range | 36 Hz - 20 kHz |
|---|---|
| Frequency Response | 42 Hz - 18 kHz |
| Coverage | 64: 60° x 40°, 66: 60° x 60°, 95: 90° x 50°, 00: 100° x 100°, 26: 120° x 60° |
| LF Driver | 1 x JBL 2262H 12 in Differential Drive driver with 3 in dual voice coil |
| HF Driver | JBL 2432H, 1.5 in exit compression driver, 3 in voice coil |
| System Type | 12" Two-Way, High Power, Full-Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr; 700 W (2800 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 126 dB-SPL cont avg (132 dB peak), HF: 133 dB-SPL cont avg (139 dB peak); Passive mode: 123 dB-SPL cont avg (129 dB peak) |
| System Sensitivity (1w @ 1m) | Passive mode: 95 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
