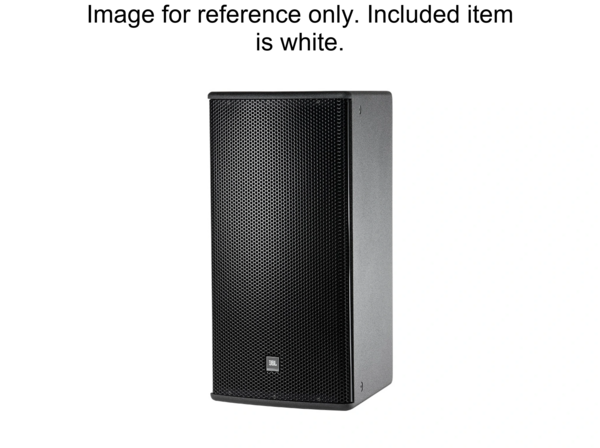

AM7212/95-WH | TWO-WAY FULL RANGE LOUDSPEAKER (WHITE)
AM7212/95-WH
TWO-WAY FULL RANGE LOUDSPEAKER (WHITE)
AM7212/95-WH
TWO-WAY FULL RANGE LOUDSPEAKER (WHITE)
- UM : EA
Description
The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Features
- 2262H Differential Drive® Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX finishes
Specifications
Frequency Range ( –10 dB) | 36 Hz - 20 kHz | |
Frequency Response ( ± 3 dB) | 42 Hz - 18 kHz | |
Coverage | /64: 60° x 40° | |
LF Driver | 2262H | |
HF Driver | 2432H | |
System Type | 12" Two - Way, High Power, Full - Range | |
Dimensions (H x W x D) | 711 x 369 x 458 mm (28 x 14.5 x 18 in) | |
Weight | 23.1 kg (51 lb) | |
Crossover Modes | Bi-amp/Passive switchable | |
Passive Crossover Frequency | 1.8 kHz | |
Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr | |
Long-Term System Power Rating (IEC) | Passive mode: 600 W (2400 W peak), 100 hrs | |
Maximum SPL (dB-SPL, 1W @ 1m) | Bi-amp mode: | |
System Sensitivity (1W @ 1m) | Passive mode: 95 dB SPL | |
Nominal Impedance | 8 ohms |
