AM7215/26 | HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7215/26
HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7215/26
HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
- UM : EA

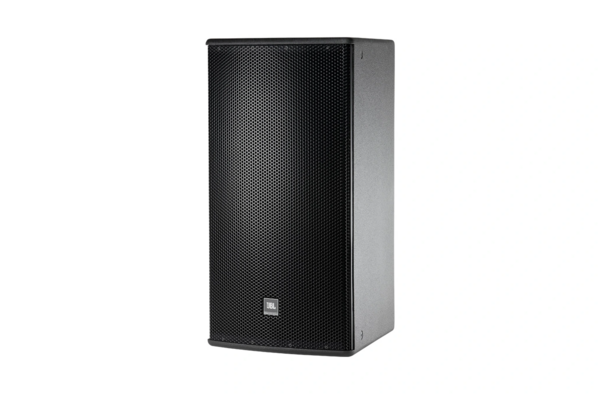

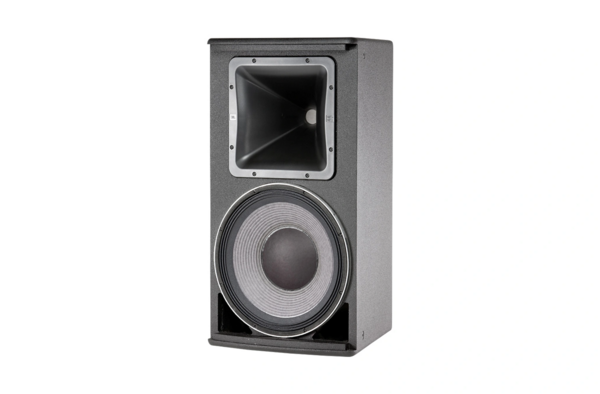

AM7215/26 is a 15-inch, 2-way full-range loudspeaker system. It features a JBL Differential Drive dual voice coil, dual magnetic gap 2265H low-frequency driver with a 380 mm (15 in) diameter, and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. The loudspeaker includes a large format Progressive Transition waveguide with a 120° horizontal by 60° vertical coverage pattern, which is rotatable to allow use in either vertical or horizontal orientation. High-slope passive crossover networks reduce band overlap. The system offers controlled off-axis response for improved array performance.
Features:
- 120° x 60° coverage
- 2265H differential drive low-frequency driver
- 2432H high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
| Frequency Range | 34 Hz - 20 kHz |
|---|---|
| Frequency Response | 40 Hz - 18 kHz |
| Coverage | 60° x 40°, 60° x 60°, 90° x 50°, 120° x 60° |
| LF Driver | 1 x JBL 2265H Differential Drive driver with dual voice coil |
| HF Driver | JBL 2432H compression driver with voice coil |
| System Type | 15" Two-Way, High Power, Full-Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr; 750 W (3000 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating (Passive mode) | 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 128 dB cont avg (134 dB peak); HF: 135 dB cont avg (141 dB peak); Passive mode: 124 dB cont avg (130 dB peak) |
| System Sensitivity (1w @ 1m, Passive mode) | 96 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points with M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
