AM7215/66 | HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7215/66
HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
AM7215/66
HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
- UM : EA

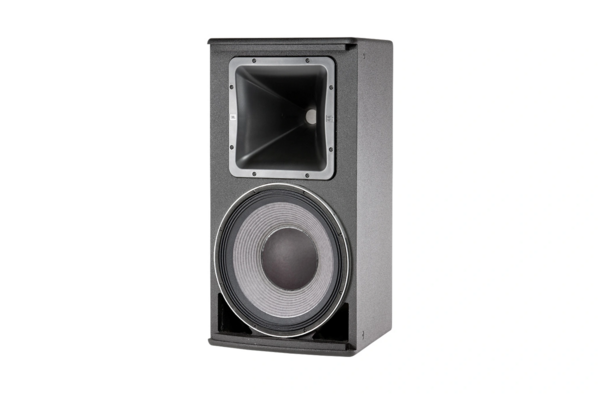

AM7215/66 is a 15-inch, 2-way loudspeaker system featuring a JBL Differential Drive dual voice coil, dual magnetic gap 2265H low-frequency driver (380 mm / 15 in), and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. The loudspeaker includes a large-format Progressive Transition waveguide with a 60° x 60° coverage pattern that is rotatable, allowing configuration in either vertical or horizontal orientation. The system employs high-slope passive crossover networks to minimize band overlap and provides controlled off-axis response to support array configurations.
Features:
- 60° x 60° Coverage
- 2265H Differential Drive Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- FIR Tuning for optimized frequency and phase response
| Frequency Range | 34 Hz - 20 kHz |
|---|---|
| Frequency Response | 40 Hz - 18 kHz |
| Coverage | 60° x 40°, 60° x 60°, 90° x 50°, 120° x 60° |
| LF Driver | 1 x JBL 2265H Differential Drive driver with dual voice coil |
| HF Driver | JBL 2432H compression driver with voice coil |
| System Type | 15" Two-Way, High Power, Full-Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000W (4000W peak), 2 hr; 750W (3000W peak), 100 hrs; HF: 100W (400W peak), 2 hrs |
| System Power Rating | Passive mode: 600W (2400W peak), 100 hrs (IEC rated) |
| Maximum SPL (1m) | Bi-amp mode: LF: 128 dB cont avg (134 dB peak); HF: 135 dB cont avg (141 dB peak); Passive mode: 124 dB cont avg (130 dB peak) |
| System Sensitivity (1W @ 1m) | Passive mode: 96 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points with M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
