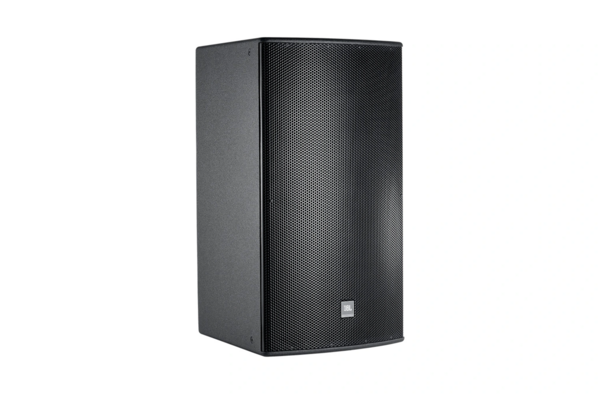

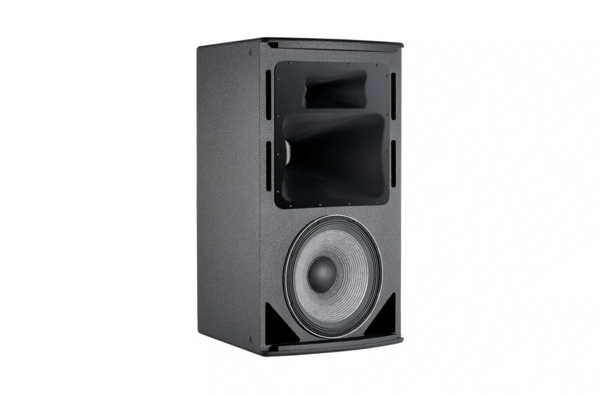

AM7315/64 is a 13-inch 3-way full-range loudspeaker system featuring a 380 mm (15 in) Differential Drive low-frequency driver, a 200 mm (8 in) CMCD Cone Midrange Compression Driver, and a high-frequency compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. The loudspeaker includes a multi-band Progressive Transition (PT) mid-high frequency waveguide with 60° x 40° coverage, which is rotatable to enable cabinet orientation in either horizontal or vertical positions. It employs high-slope crossovers to minimize frequency band overlap and provides controlled off-axis response. The cabinet is equipped with M10 threaded suspension points for mounting. Pre-engineered array brackets are available.
Features:
- 2265H Differential Drive Low-Frequency Driver
- CMCD Cone Midrange Compression Driver
- 2432H High-Frequency Compression Driver
- PT Progressive Transition Waveguide
- Bi-Amp/Tri-Amp Switchable
| Frequency Range (-10dB) | 38 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 45 Hz – 18 kHz |
| Coverage Pattern | 60° x 40°, rotatable waveguide (model 64); 90° x 50°, rotatable waveguide (model 95) |
| Directivity Index (DI) | 13 dB |
| Crossover Modes | Tri-amp/Bi-amp switchable |
| Crossover Frequencies | 300 Hz and 2.3 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hrs; 750 W (3000 W peak), 100 hrs; MF: 350 W (1400 W peak), 2 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating | LF: 600 W (2400 W peak), 100 hrs; MF/HF: 200 W (800 W peak), 100 hrs |
| Maximum SPL (1m) | LF: 127 dB cont avg (133 dB peak); Tri-amp mode: MF: 133 dB cont avg (139 dB peak); HF: 135 dB cont avg (141 dB peak); Bi-amp mode: MF/HF: 133 dB cont avg (139 dB peak) |
| System Sensitivity of Passive Sections (1W @ 1m) | MF/HF Section in Bi-amp mode: 108 dB SPL |
| Nominal Impedance | 8ohms |
| LF Driver | JBL 2265H Differential Drive driver |
| Sensitivity (1W @ 1m) (Low Frequency) | 97 dB SPL |
| MF Driver | JBL CMCD-82H Cone Midrange Compression Driver with integral Differential Drive dual voice coil |
| Sensitivity (1W @ 1m) (Midrange) | 108 dB SPL |
| HF Driver | JBL 2432H exit compression driver |
| Sensitivity (1W @ 1m)(High Frequency) | 115 dB SPL |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| Finish | Black DuraFlex finish |
| baffle | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |

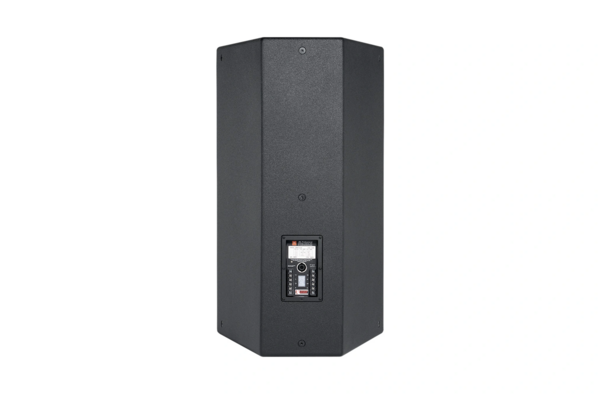

| Input Connector | NL8 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm spade lugs; Speakon in parallel with barrier strip for loop through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers; optional planar array frame kit; see AE Series Bracket Guide |
| Nominal LF Driver Impedance | 8ohms |
| Nominal MF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
