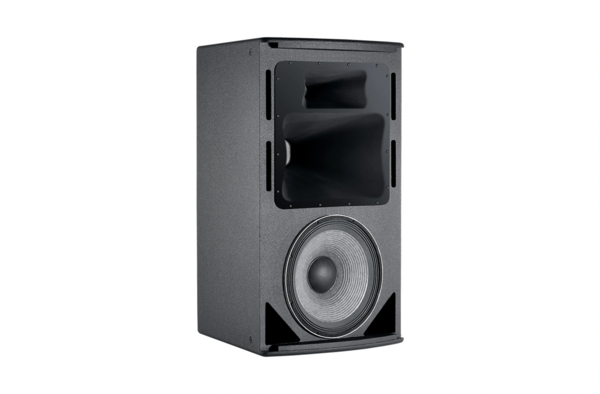

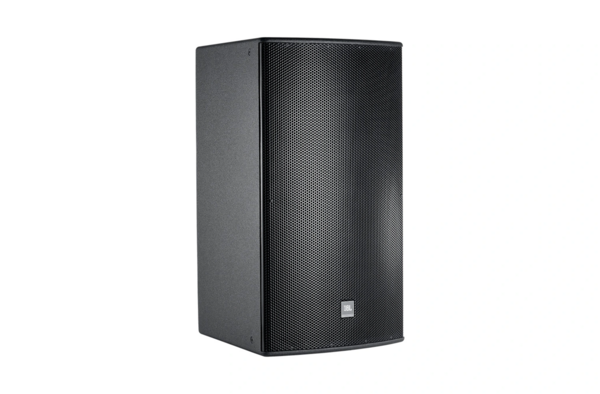

AM7315/95 is a high-power, 15-inch, 3-way full-range loudspeaker system. It includes a 380 mm (15 in) Differential Drive low-frequency driver, a 200 mm (8 in) CMCD cone midrange compression driver, and a high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The loudspeaker features a multi-band PT Progressive Transition mid-high frequency waveguide with a coverage angle of 90° horizontal by 50° vertical, which is rotatable for cabinet orientation in either horizontal or vertical positions. High-slope crossovers reduce frequency band overlap, and the system provides controlled off-axis response for improved array performance. The cabinet includes M10 threaded suspension points and supports pre-engineered array bracketry.
Features:
- 2265H Differential Drive Low-Frequency Driver
- CMCD Cone Midrange Compression Driver
- 2432H High-Frequency Compression Driver
- PT Progressive Transition Waveguide
- Bi-Amp/Tri-Amp Switchable
| Frequency Range (-10dB) | 38 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 45 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° or 90° x 50°, rotatable waveguide |
| Directivity Index (DI) | 13 dB |
| Crossover Modes | Tri-amp/Bi-amp switchable |
| Crossover Frequencies | 300 Hz and 2.3 kHz |
| Transducer Power Rating (AES) | LF 1000 W (4000 W peak) 2 hrs, 750 W (3000 W peak) 100 hrs, MF 350 W (1400 W peak) 2 hrs, HF 100 W (400 W peak) 2 hrs |
| System Power Rating | LF 600 W (2400 W peak) 100 hrs, MF/HF 200 W (800 W peak) 100 hrs |
| Maximum SPL (1m) | LF 127 dB cont avg (133 dB peak), Tri-amp: MF 133 dB cont avg (139 dB peak), HF 135 dB cont avg (141 dB peak), Bi-amp: MF/HF 133 dB cont avg (139 dB peak) |
| System Sensitivity of Passive Sections (1W @ 1m) | MF/HF Section in Bi-amp mode 108 dB SPL |
| Nominal Impedance | 8ohms |
| LF Driver | JBL 2265H Differential Drive driver |
| Sensitivity (1W @ 1m) Low Frequency | 97 dB SPL |
| MF Driver | JBL CMCD-82H Cone Midrange Compression Driver with integral Differential Drive dual voice coil |
| Sensitivity (1W @ 1m) Midrange | 108 dB SPL |
| HF Driver | JBL 2432H compression driver with 75 mm voice coil |
| Sensitivity (1W @ 1m) High Frequency | 115 dB SPL |
| Enclosure | Trapezoidal 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| Finish | Black DuraFlex |
| baffle | Powder coated 14 gauge perforated steel with acoustic foam backing |

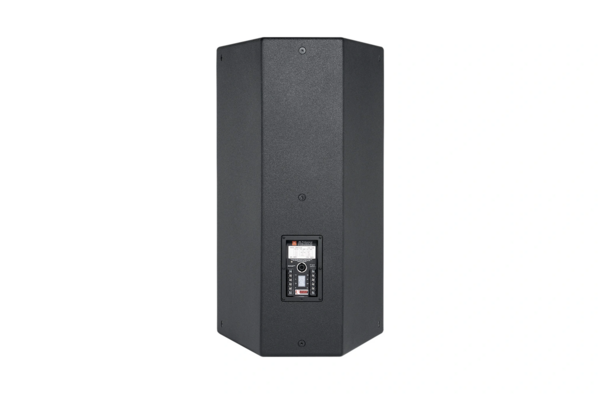

| Input Connector | NL8 Neutrik Speakon and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, optional planar array frame kit |
| Nominal LF Driver Impedance | 8ohms |
| Nominal MF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
