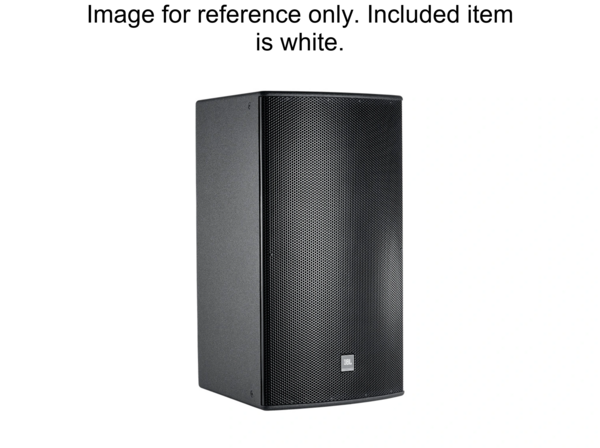

AM7315/95-WH is a 15-inch, 3-way full-range loudspeaker system featuring a 380 mm (15 in) Differential Drive low-frequency driver, a 200 mm (8 in) CMCD Cone Midrange Compression Driver, and a high-frequency compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil. It includes a multi-band PT Progressive Transition mid-high frequency waveguide with a coverage pattern of 90° x 50°, which is rotatable to accommodate horizontal or vertical cabinet positioning. The system utilizes high-slope crossovers to reduce band overlap and provides controlled off-axis response for improved array performance. The cabinet is equipped with M10 threaded suspension points. Compatible pre-engineered array brackets are available.
Features:
- 2265H Differential Drive Low-Frequency Driver
- CMCD Cone Midrange Compression Driver
- 2432H High-Frequency Compression Driver
- PT Progressive Transition Waveguide
- Bi-Amp/Tri-Amp Switchable
| Frequency Range | 38 Hz – 20 kHz |
|---|---|
| Frequency Response | 45 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° or 90° x 50°, rotatable waveguide |
| Directivity Index | 13 dB |
| Crossover Modes | Tri-amp/Bi-amp switchable |
| Crossover Frequencies | 300 Hz and 2.3 kHz |
| Transducer Power Rating (AES) | LF 1000 W (4000 W peak) 2 hrs, 750 W (3000 W peak) 100 hrs, MF 350 W (1400 W peak) 2 hrs, HF 100 W (400 W peak) 2 hrs |
| System Power Rating | LF 600 W (2400 W peak) 100 hrs, MF/HF 200 W (800 W peak) 100 hrs |
| Maximum SPL (1m) | LF 127 dB cont avg (133 dB peak), MF 133 dB cont avg (139 dB peak), HF 135 dB cont avg (141 dB peak) |
| System Sensitivity Passive (1W @ 1m) | MF/HF 108 dB SPL |
| Nominal Impedance | 8ohms |
| LF Driver | JBL 2265H Differential Drive driver |
| Sensitivity Low Frequency | 97 dB SPL |
| MF Driver | JBL CMCD-82H Cone Midrange Compression Driver with 200 mm differential drive |
| Sensitivity Midrange | 108 dB SPL |
| HF Driver | JBL 2432H compression driver |
| Sensitivity High Frequency | 115 dB SPL |
| Enclosure | Trapezoidal, 16 mm Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| Finish | White DuraFlex |
| baffle | Powder coated 14 gauge perforated steel with acoustic foam backing |
| Input Connector | NL8 Neutrik Speakon and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, planar array frame kit |
| Nominal LF Driver Impedance | 8ohms |
| Nominal MF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
