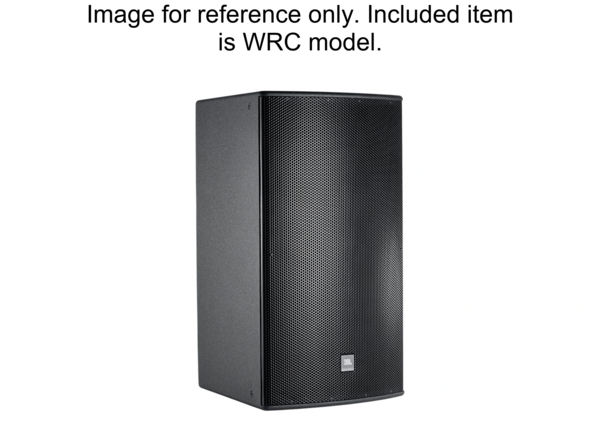

AM7315/95-WRC is a 15-inch, 3-way loudspeaker system featuring a 380 mm (15 in) Differential Drive low-frequency driver, a 200 mm (8 in) CMCD Cone Midrange Compression Driver, and a high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The loudspeaker includes a multi-band PT Progressive Transition mid-high frequency waveguide with a 90° horizontal by 50° vertical rotatable horn, allowing for cabinet orientation in horizontal or vertical positions. It employs high-slope crossovers to minimize frequency overlap and provides controlled off-axis response for improved array configurations. The enclosure is equipped with M10 threaded suspension points. Compatible pre-engineered array bracketry is available.
Features:
- 2265H Differential Drive Low-Frequency Driver
- CMCD Cone Midrange Compression Driver
- 2432H High-Frequency Compression Driver
- PT Progressive Transition Waveguide
- Bi-Amp/Tri-Amp Switchable
| Frequency Range (-10dB) | 38 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 45 Hz – 18 kHz |
| Coverage Pattern | 60° x 40°, rotatable waveguide / 90° x 50°, rotatable waveguide |
| Directivity Index (DI) | 13 dB |
| Crossover Modes | Tri-amp/Bi-amp switchable |
| Crossover Frequencies | 300 Hz and 2.3 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hrs; 750 W (3000 W peak), 100 hrs; MF: 350 W (1400 W peak), 2 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating | LF: 600 W (2400 W peak), 100 hrs; MF/HF: 200 W (800 W peak), 100 hrs |
| Maximum SPL (1m) | LF: 127 dB-SPL cont avg (133 dB peak); Tri-amp mode: MF: 133 dB-SPL cont avg (139 dB peak); HF: 135 dB-SPL cont avg (141 dB peak); Bi-amp mode: MF/HF: 133 dB-SPL cont avg (139 dB peak) |
| System Sensitivity of Passive Sections (1W @ 1m) | MF/HF Section in Bi-amp mode: 108 dB SPL |
| Nominal Impedance | 8ohms |
| LF Driver | JBL 2265H Differential Drive driver |
| Sensitivity (1W @ 1m) (Low Frequency) | 97 dB SPL |
| MF Driver | JBL CMCD-82H Cone Midrange Compression Driver with integral Differential Drive dual voice coil |
| Sensitivity (1W @ 1m) (Midrange) | 108 dB SPL |
| HF Driver | JBL 2432H compression driver |
| Sensitivity (1W @ 1m) (High Frequency) | 115 dB SPL |
| Enclosure | Trapezoidal 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with black foam backing |
| Input Connector | NL8 Neutrik Speakon and CE-compliant barrier strip terminals, accept up to 5.2 sq mm wire or 9 mm spade lugs, Speakon in parallel with barrier strip for loop through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers; Optional planar array frame kit |
| Nominal LF Driver Impedance | 8ohms |
| Nominal MF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
