MOMENTARY DPDT PUSHBUTTON - TERMINAL BLOCK CONNECTIONS
Click image to enlarge

AMS-PB1
MOMENTARY DPDT PUSHBUTTON - TERMINAL BLOCK CONNECTIONS

  • UM : EA

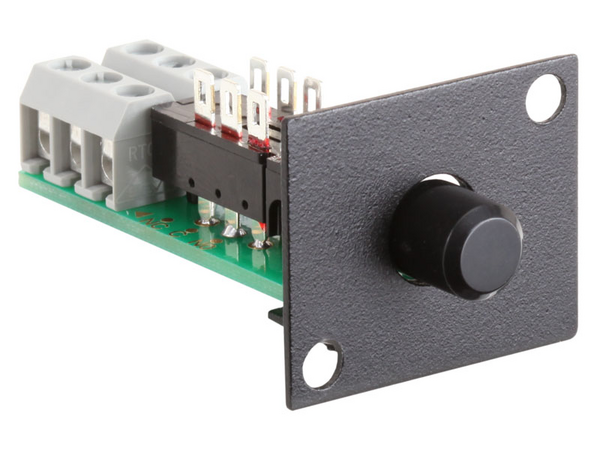

The AMS-PB1 is an accessory with a DPDT momentary pushbutton switch that mounts in AMS mounting frames and in standard D-style cutouts. Two high quality terminal blocks are provided for the connections. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Features:

  • Mounts in D-Style Standard Cutouts
  • Mounts in all RDL AMS Mounting Frames
  • Mounts in RDL Decora-Style Wall Plates
  • Availability of a Wide Variety of Associated AMS Accessories
  • Bezel Provides Professional Aesthetic Appearance
  • Provides Flexibility for Connections and Controls
WEEE Weight 0.043 lbs
Tariff code 8543.70.9860
Ambient Operating Environment -10° C to 60° C
Package Type Bag
Shipping Weight 0.071 lbs
Mounting AMS mounts
D-Style cutouts
Depth (behind the panel) 2.08 in
Maximum Switching Power 15 W (30 Vdc, 0.5 A)
