ANI4OUT-BLOCK | 4-OUTPUT, BLOCK CONNECTORS, MIC/LINE DANTE™ AUDIO NETWORK INTERFACE WITH PEQ AND AUDIO SUMMING

ANI4OUT-BLOCK
4-OUTPUT, BLOCK CONNECTORS, MIC/LINE DANTE™ AUDIO NETWORK INTERFACE WITH PEQ AND AUDIO SUMMING

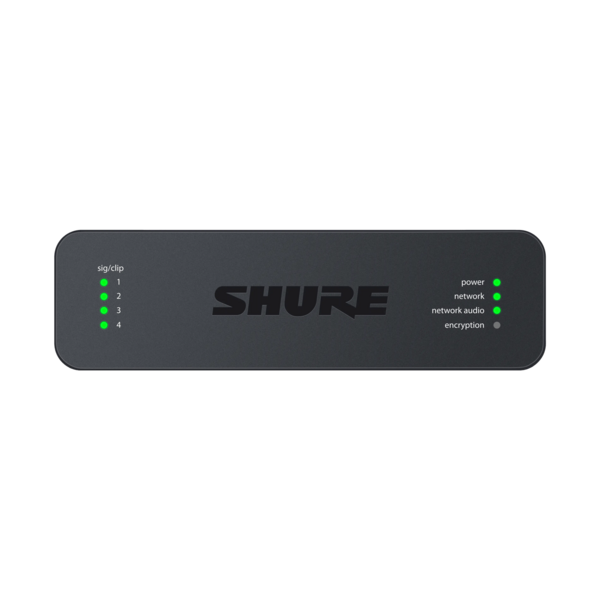

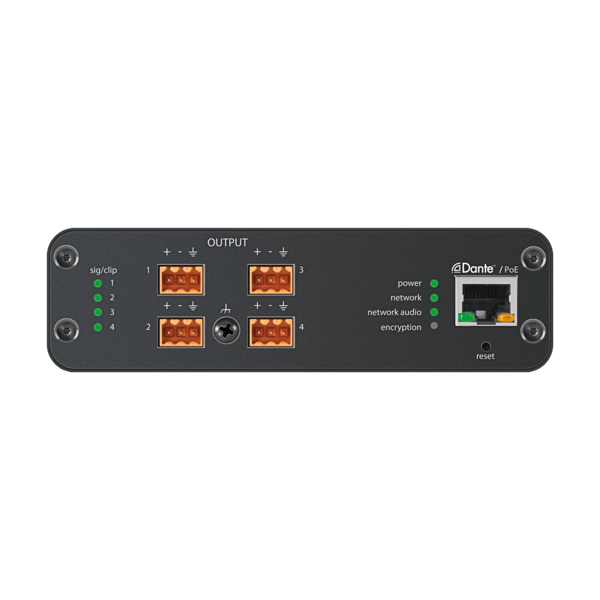

The Shure Audio Network Interface converts 4 channels of Dante^™ digital audio into discrete analog signals. Connect to a processing device with analog connections (audio processors, video codecs, and loudspeaker systems, for example) to fully integrate networked audio and analog equipment in a single system.

FEATURES

• Single Ethernet port carries Dante audio, power (PoE – class 0)
• LEDs indicate device status and audio signal
• Control strings for third-party preset controllers including Crestron® and AMX®
• 4 Band C/S PEQ on every channel
• Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
• Browser-based software control for all device parameters, per output channel:
• Mute control
• Digital gain
• Polarity control
• 1/3 Rack unit wide
• Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
• Available in block connector and standard XLR variations
