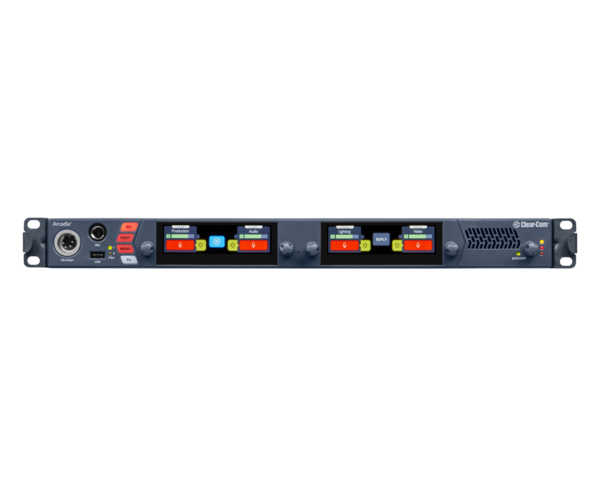

ARCADIA-X5-144P | Arcadia with 5-pin Headset Connector

ARCADIA-X5-144P
Arcadia with 5-pin Headset Connector

ARCADIA CENTRAL STATION

Scalable 1RU IP intercom device integrating FreeSpeak and HelixNet with I.V. Direct, Dante, 2-Wire and 4-Wire interfaces.

Arcadia with 5-pin Headset Connector

ARCADIA-X5-144P

Details

Arcadia Central Station

• Combined Wired and Wireless Intercom
• I.V. Direct Clear-Com Global Interfacing

            - LQ
            - Eclipse E-IPA
            - Arcadia

• Local Dante and Analog Interfacing
• CCM^™ browser setup, configuration & monitoring
• Scalable Licensed Port capacity
• Front panel color touch screen with encoders for control and configuration
• Plug-and-go central discovery and pairing

Capacity

FreeSpeak Wireless Intercom

• (10) FSII E1 Transceivers (1.9¹, 2.4 GHz)
• (32) FSII IP Transceivers (1.9¹, 5 GHz)
• (64) FSII, Icon & FSE Beltpacks² (1.9¹, 2.4, 5 GHz)

HelixNet Wired Intercom

• (24) Enabled Channels²
• (24) Powerline Devices
• (128) User Stations (Beltpack, Speaker- & Remote)

• I.V. Direct Clear-Com Interface

• (16) I.V. Direct Ports²

Dante Audio Network Interfaces

• (64) Dante Ports²

Configuration

• • (168) Licensed Ports²
  - FreeSpeak Beltpack
  - HelixNet Enabled Channel
  - I.V. Direct Port
  - Dante Port
• (100) Channels
• (100) Groups
• (200) Roles for FreeSpeak & HelixNet

Connectivity

• (8) Four-Wire - 1 for PGM/SA
• (4) 2-Wire - 550mA per pair
• (2) GPI Optically Isolated
• (4) GPO Relay
• (2) FreeSpeak E1 - RJ45/SFP switchable
• (4) LAN - (2) RJ45, (2) SFP
