ASB6112 | ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM, 2263H DIFFERENTIAL DRIVE WOOFER / BLACK

  • MAP: $2,100.00 / EA
  • List Price: $2,100.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM, 2263H DIFFERENTIAL DRIVE WOOFER / BLACK
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM, 2263H DIFFERENTIAL DRIVE WOOFER / BLACK

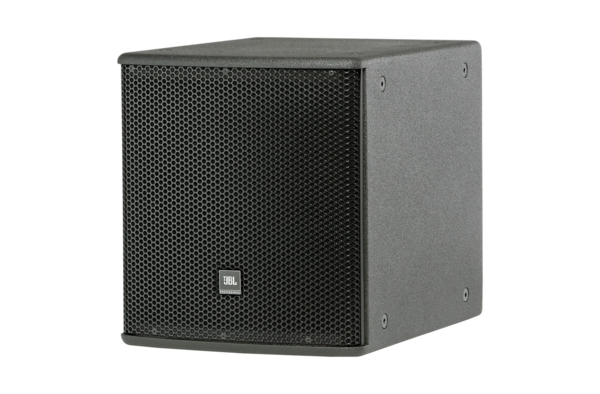

Click image to enlarge
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM, 2263H DIFFERENTIAL DRIVE WOOFER / BLACK
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM, 2263H DIFFERENTIAL DRIVE WOOFER / BLACK

ASB6112
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM, 2263H DIFFERENTIAL DRIVE WOOFER / BLACK

  • UM : EA
  • Estimated Weight: 39.0

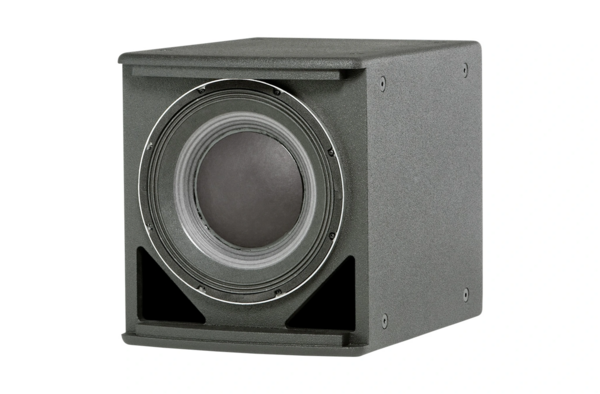

ASB6112 is a front-loaded vented subwoofer enclosure featuring a 12-inch JBL 2263H Differential Drive dual coil dual gap woofer. The woofer incorporates a neodymium magnet and a durable cone designed for extended service life.

  • 12" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 1000 watts continuous power
  • 4000 watts peak power handling
  • Large vent area for high output low distortion
  • FIR Tuning matches phase profile
  • Suitable for ground-stacked or suspended applications
  • Compatible with AE Series products
Frequency Range 35 Hz – 1 kHz
Frequency Response 43 Hz – 1 kHz
Transducer Power Rating 1000 W (4000 W peak), 2 hrs
System Power Rating 700 W (2800 W peak), 100 hrs
Maximum SPL 126 dB-SPL continuous average, 132 dB peak
System Sensitivity 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8 ohms
LF Driver 1 x 2263H, 305 mm dia., 75 mm Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
Finish Black DuraFlex finish
Grille Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or max width 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8 ohms
