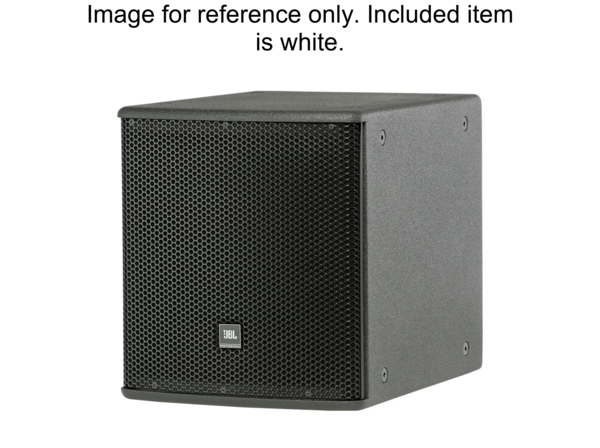

ASB6112-WH | ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM. 2263H DIFFERENTIAL DRIVE WOOFER,

  • MAP: $2,100.00 / EA
  • List Price: $2,100.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

ASB6112-WH
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM. 2263H DIFFERENTIAL DRIVE WOOFER,

  • UM : EA

ASB6112-WH is a front-loaded vented subwoofer enclosure featuring a 12-inch JBL 2263H Differential Drive dual coil dual gap woofer. The woofer incorporates a neodymium magnet and a durable cone designed for extended service life.

  • 12" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 1000 watts continuous pink noise power
  • 4000 watts peak power handling
  • Large vent area for high output, low distortion
  • FIR Tuning matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with other AE Series products
Frequency Range (-10dB) 35 Hz – 1 kHz
Frequency Response (±3 dB) 43 Hz – 1 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
System Power Rating 700 W (2800 W peak), 100 hrs
Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB cont avg (132 dB peak)
System Sensitivity 40 Hz - 300 Hz: 96 dB, 1W (2.83V) @ 1m
Nominal Impedance 8 ohms
LF Driver 1 x 2263H, 12 in dia., 3 in Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
Finish White DuraFlex finish
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8 ohms
